TITAN 60tons fence semi trailer has been finished, it will be sent to Sudan. This customer is our agent in Sudan.
He often orders fence trailer with different configurations from us. This time he ordered 2 units with Jost landing legs. The 4 axle fence trailer carries a weight of 50 tons. Because the customer is more anxious to use, we placed an urgent order for the customer and completed the delivery ahead of schedule. The production cycle of the livestock trailer is 15-30 working days.
60 tons cargo semi trailer
Fence semi trailer develops on the basis of container flatbed trailers and sidewall trailers. The stake trailer has a fence structure design. Mainly used for transportation of agricultural and sideline products and other bulk cargo.
The construction of livestock trailer bodies is usually of side walls that have tubular truss-type support structures closed in through the use of spaced-parallel and horizontal slats that are fastened to one another. Some of these types of trailers normally come with a removable floor located somewhat at the middle section hence offering separate lower and upper decks for loading the animals.

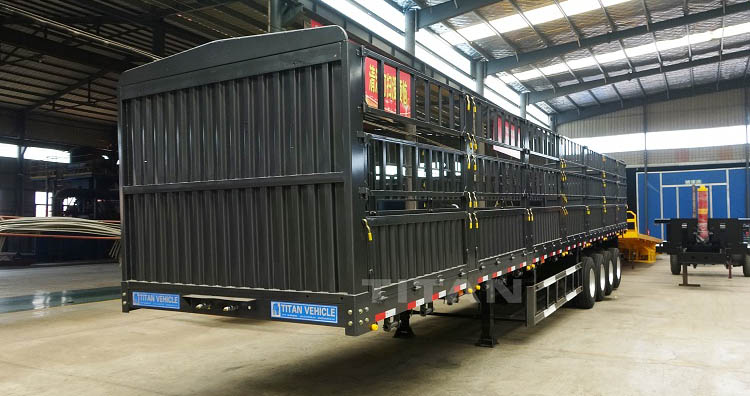

livestock fence trailer for Sudan
Livestock fence trailers come in different types. Each of the different designs is made to serve a specific function. You can choose among these different types based on your need. Here are some of the trailers you will find out there in the market. According to the shape, we can be divided into fence trailer, Enclosed type trailer, van trailer.
Fence trailer
The fence type is a cheap and light construction compared to other livestock trailers that you will ever come across out there in the market. It is designed and built in such a way that it is easy to clean, which is a very important aspect to consider during your purchase.
This type of fence trailer is TITAN most commonly sold model and exported to Sudan, Nigeria, Zambia, Senegal, etc.
the loading capacity of the fences trailer is larger. Due to its breathability, the range of the cargo that can be pulled is also wider than that of the van trailer. It is also more convenient in loading and unloading than the van trailer.
At present, the most common cargo trailer in daily life is the fence trailer that pulls vegetables. because of the good air permeability of the fence semi trailer, if it is a sealed environment, in the summer, the cargo is easily damaged.

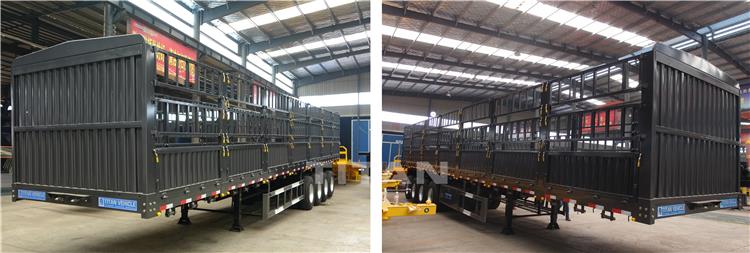

60 tons livestock trailer for sale
Van trailer
The Van type is designed and made in a way that keeps the cabin temperature stable. This is the type of livestock trailer that you need when transporting animals that need close care and attention especially on the ambient conditions off transportation.
It helps in keeping the animals healthy and free from any illness. This is the type of livestock trailer to use if you are dealing with and transporting for high-profit animals.

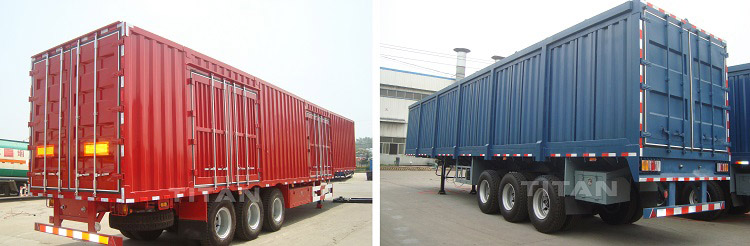

3 axle Van trailer

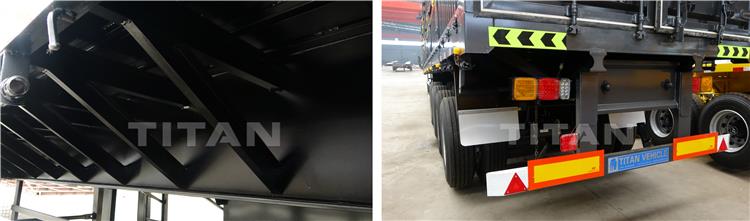

(1) Bottom Floor, many fence trailers are also used to transport bulk cargo and other items. The bottom plate of the fence drop side trailer passes the international standard 3mm thick checkered plate.
(2) Side door. The common height of side door is 600mm, 800mm, 1000mm. The side door adopts vertical corrugated structure. The door frame is a 40x60mm rectangular steel tube.

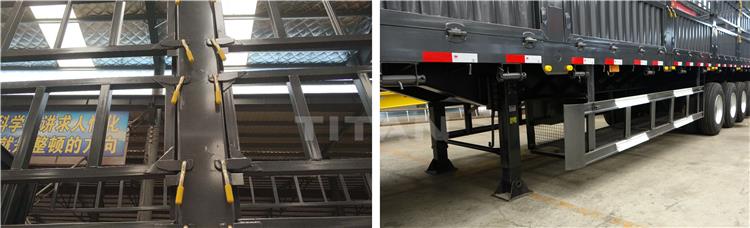

(3)The optional Jost landing leg is a world recognized famous brand accessory Better bearing capacity and long service life.
animal transport trailer
(4) The work platfrom is the main load-bearing part, which is composed of the main beam, side beam, cross beam, bottom floor, suspension and so on.
The main beam should pay attention to whether the thickness is an international standard. The international standard for the main beam of a cargo trailer is 14/8/16 mm. The steel plate in the middle of the beam uses Q345B manganese steel. TITAN Vehicle uses automatic arc-submerging welding method to weld the main beam, there isn’t interface between the steel plate，it can ensure the intergrated main beam, so the main beam is more stronger and more durable.
(5) We use polyurethane paint, high adhesion, high chroma, beautiful color, the paint will not fall off after more than five years of use.
4 axle fence semi trailer for Sudan
The livestock trailer is a very useful vehicle for livestock farmers and those involved in the livestock industry operations. Different types of animals can be loaded on these trailers and that is why there are different designs and structures customized to address each of these situations.
If you are dealing with many animals, ensure that that you get a multi-floor trailer for your livestock. This will enhance your efficiency by transporting many animals at ago.

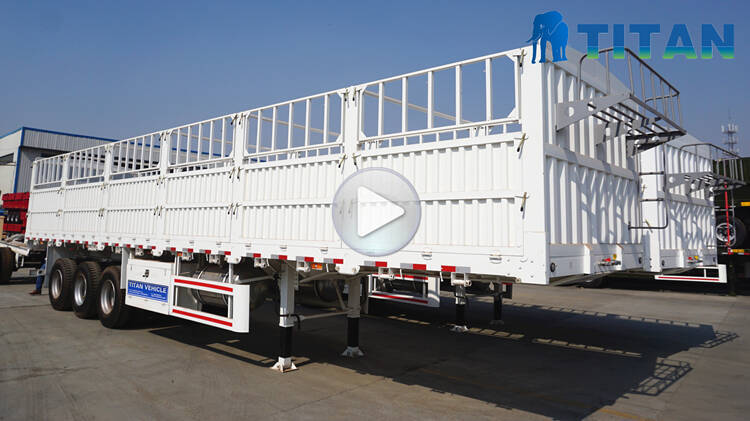

Through the video below, you can learn about different types of fence semi trailers(like 3 axle fence trailers, 4 axle stake trailer and fence full trailer)
And the process, testing, packaging and customer feedback, etc.
