Table of contents
Chapter 1: What is lowbed trailer?
1.1: How high is a lowbed trailer?
1.2: How long is a lowbed trailer?
1.3: Lowbed trailer dimensions
1.4: Lowbed trailer capacity
Chapter 2: How to choose the lowbed trailer that suits you?
Chapter 3: Two most common type suspensions of lowbed trailer
Chapter 4: Different type ramps of lowbed trailer
150 Ton Heavy Duty Lowbed Trailer for Sale
A lowbed trailer is a type of heavy-duty trailer that is designed to transport oversize and overweight cargo. Lowbed trailers are typically used to haul heavy construction equipment such as bulldozers, excavators, cranes, and generators. They can also be used to transport large industrial machinery, prefabricated homes, and other oversized items.
It has a lower deck height than a standard flatbed trailer, allowing it to carry taller loads while maintaining proper clearance on the road. The low design helps keep the center of gravity low which increases stability during transportation, making the process safer and more efficient.
Specification of TITAN most popular 3 axle lowbed trailer:
Loading capacity: 60-80 Ton
Axle: 3 axles, FUWA/BPW/TITAN Brand
Tire: 12 units
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Landing gear: JOST brand
Ramp: Spring ramp
Valve: WABCO valve

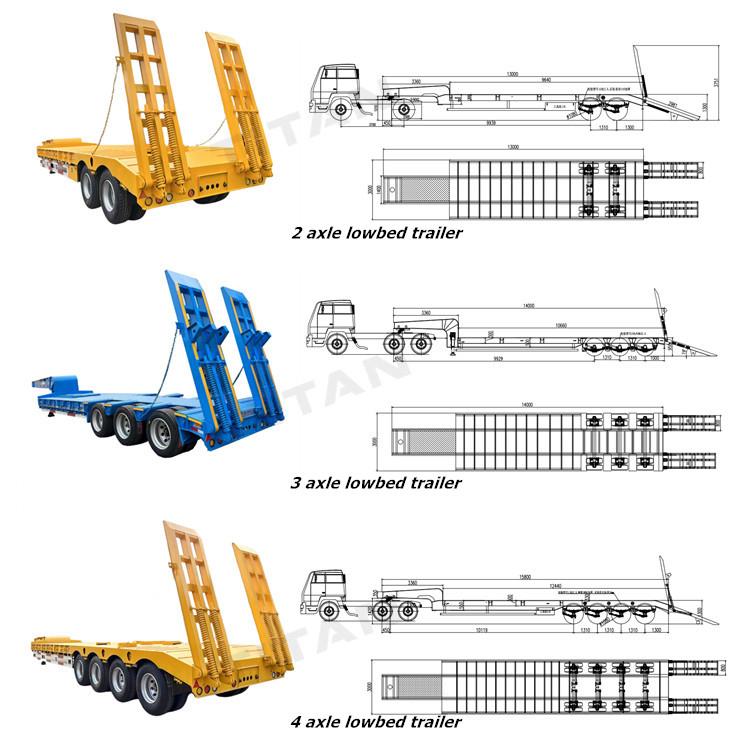

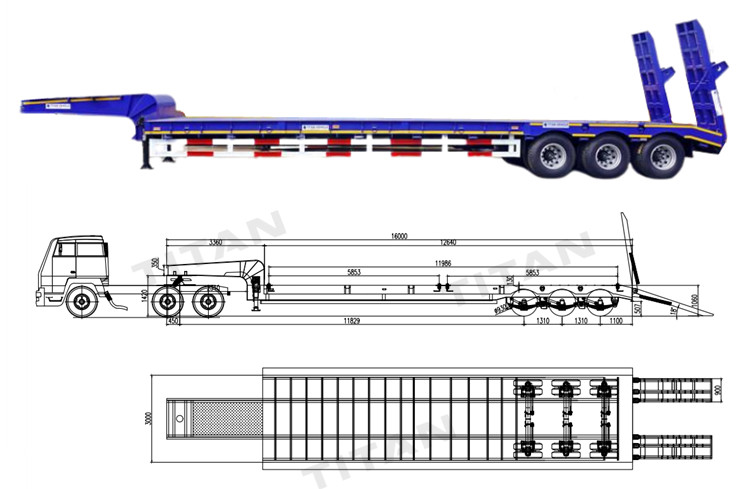

Drawing of 3 axle lowbed trailer
lowbed trailer height from ground: 850-1250 mm
lowbed trailer max-height: 1750 mm
The 2 axle lowbed trailer length: 11500mm
The 3 axle lowbed trailer for sale length: 13000mm
The 4 axle lowbed trailer price length: 15800mm
2 axle lowbed trailer price dimensions: 11500*2500*2900mm
3 axle lowbed trailer dimensions: 13000*3000*3400mm
4 axle lowbed trailer for sale dimensions: 15800*3000*3400mm
2 axle lowbed trailer capacity: 30-40 ton
3 axle lowbed trailer price capacity: 50-80 ton
4 axle lowbed trailer loading capacity: 80-120 ton
Choosing the right lowbed trailer requires you to consider several important factors. Here are some things to keep in mind:
1. Deck height: Determine how high your cargo is and choose a lowbed trailer with a deck height that can accommodate it comfortably.
2. Length of the trailer: Ensure that the length of the lowbed trailer is appropriate for the type of cargo you will be carrying.
3. Weight capacity: Consider the maximum weight capacity of the lowbed trailer you need. This will depend on the weight of the cargo you intend to haul.
4. Tires: The tires of the lowbed trailer for sale should be durable and have the appropriate load rating for the weight of your cargo.
5. Suspension system: The suspension system of the lowbed trailer should be strong enough to handle heavy loads while also providing a smooth ride for your cargo.
6. Braking system: Ensure that the braking system of the lowbed trailer is reliable and adequate for the weight of your cargo.
7. Brand reputation: Choose a reputable brand with a proven track record of producing reliable and high-quality lowbed trailers.
8. Cost: Set a budget for your lowbed trailer and choose the one that meets your needs within your budget.
By considering these factors, you can select the lowbed trailer that best suits your needs.

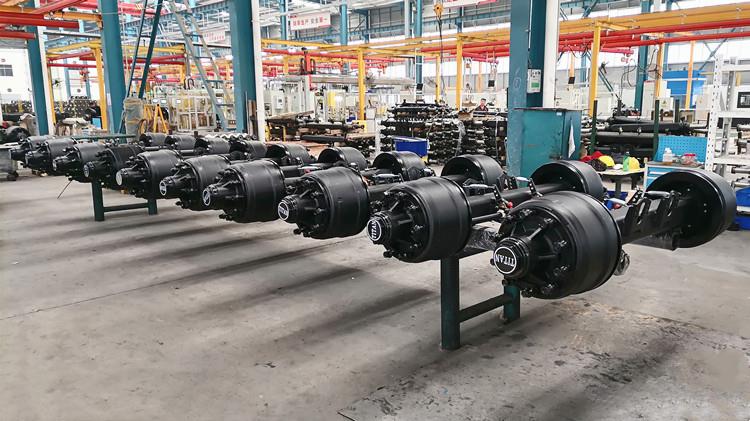

TITAN Axles of Lowbed Trailer in Factory
One of the considerations to make when buying lowbed trailer is the suspension systems used in the vehicle. The suspension system in a semi-trailer determines its load capacity, maintenance needs, cost, and stability among other aspects. The suspension system also influences the driver’s comfort and safety especially when driving on rough terrains.
The function and reliability of suspension systems vary depending on the brand or model. Hence, vehicle owners should consider installing suspension systems from brands with high-quality standards to avoid occasional breakdowns.
The benefits of each of the suspension systems are outlined below.
1. Mechanical suspension
One of the main benefits of mechanical suspension systems is that they are highly stable on all terrains. The load distribution in a lowbed trailer with mechanical suspensions remains constant when brakes are applied. The suspensions are cheap compared to other models and have a high load capacity. The high capacity enables the lowbed trailers to carry out heavy-duty tasks.
Another advantage of these suspension systems is that they have low maintenance costs and require low and sometimes no lubrication.
Mechanical suspensions are recommended for lowbed trailers that work on impassable or rough terrains. The suspensions have enough strength or capacity to handle such terrains.

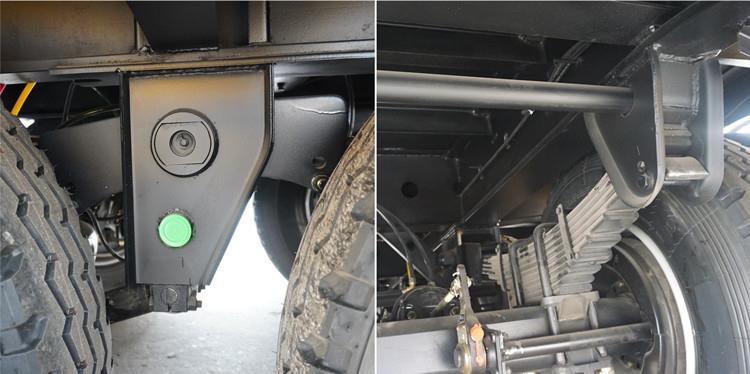

Mechanical Suspension of Lowbed Trailer
2. Air suspension
An air suspension system consists of polyurethane bags and rubber that are inflated using a compressor.
One of the main advantages of these air suspensions is that the driver is more comfortable when driving a lowbed trailer with air suspensions. Such vehicles glide over bumps easily with less impact on the driver in terms of pain, noise, and harshness.
In addition, air suspensions have less vibration, which translates to less wear and tear on the other parts of the lowbed trailer for sale. The driver can adjust the ride height depending on the terrain, speed, and load on the trailer. Since the trailers slide over bumps and their heights can be adjusted, air suspensions enable drivers to transport fragile items.
Additional benefits of air suspensions include increased versatility over different terrains. Drivers report that lowbed trailers with air suspension consume less fuel than other models of lowbed trailers. The improved control, stability, and aerodynamics translate to fewer road accidents.

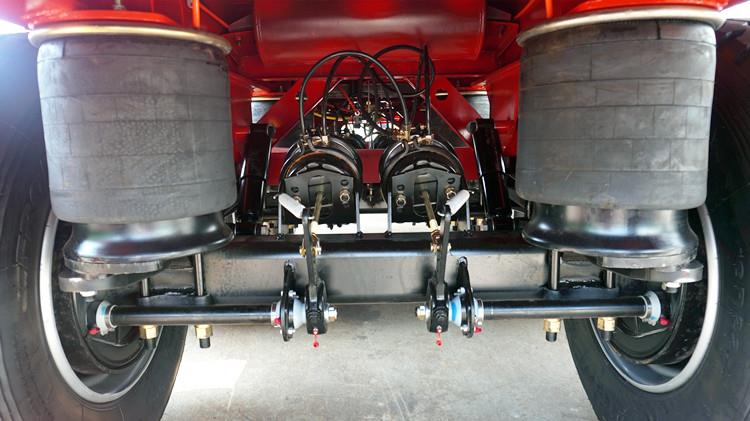

Air Suspension of Lowbed Trailer
Each suspension system has its advantages and disadvantages. The right choice of a suspension system depends on various factors including the type of cargo that the lowbed trailer carries and the most used terrain.
The choice also depends on the highest weight of the cargo, weight variation, the required level of stability, and the turning frequency among other factors.
TITAN lowbed trailer for sale loading ramps are made by high strength steel, with high loading capacity, which will not happen to the deformation when carrying heavy equipment. There are several different types of ramps that can be used with a lowbed trailer, depending on the specific needs of the user. Here are some common types of ramps:
1. Fixed Spring Ramps: These are permanently attached to the lowbed trailer and cannot be removed. They are usually made of steel and are ideal for transporting heavy equipment. This type of ramp is designed with a hinge mechanism that allows the ramp to be easily raised and lowered.
2. Folding Ramps: The folding ramp is designed to fold and store neatly when not in use, which makes it easier to transport the lowbed trailer without taking up too much space. It is attached to the back of the trailer and can be unfolded for loading and unloading. Using a longer ramp reduces the slope, which makes it easier to move heavy cargo.
3. Hydraulic Ramps: These ramps are operated by a hydraulic system, which makes them easy to raise and lower. This makes it much easier to load and unload heavy equipment or vehicles, as the ramp can be adjusted to the appropriate height with just the push of a button or lever. They are ideal for loading and unloading heavy equipment quickly and efficiently.
4. Detachable Ramps: These ramps can be detached from the lowbed trailer and stored separately when not in use. This can be helpful if you need to transport different types of cargo that require different ramp configurations.

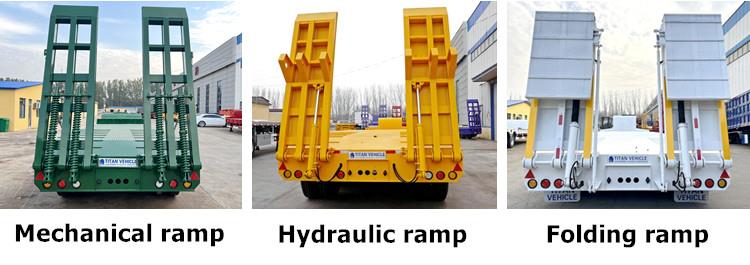

Different Types Ramp of Lowbed Trailer
