TITAN absorbs European advanced design and combining with actual transport requirement of customer, that make us have ability to customize lowboy trailer fro your special needs.
TITAN removable gooseneck trailer is especially for the transport of high and voluminous loads, where every millimeter loading height counts, but also for high construction machines, extremely low loading platform trailers are in great demand. For these operations TITAN offers the most varied removable gooseneck trailer and all these results in and individual and economical use of the vehicles.

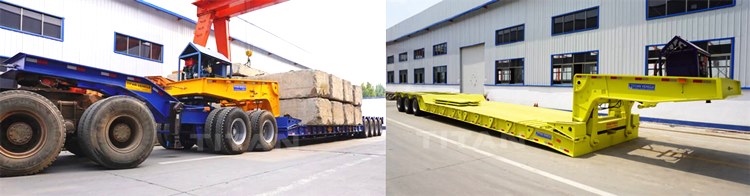

4 Axle Removable Gooseneck Trailer with dolly & 3 Line 6 Axle Removable Gooseneck Trailer
1. HG60 High strength steel material,improve 20% loading capacity .
Welded by HG60 high strength steel with robust construction, that can improve 20% loading capacity than other brand trailer that produced with Q345 steel material.
2. Hydraulic gooseneck to adjust the front height of platform.
The hydraulic gooseneck can adjust the front loading platform height , make sure the trailer can go through the bridge or tunnel.
3. Lower and longer loading platform with lower the center of gravity.
That ensure its low gravity center, improve the stability when trailers running and also reduce the fuel consumption for our customers.
4. Front loading method for machinery climb on the deck.
Front loading in front of chassis, with small slope angle, that make sure the machinery climb on the deck fast and safely.
5. Removable gooseneck trailer uses polyurethane paint, high adhesion, high color rendering, beautiful color, and the cost is twice that of ordinary paint. But the paint will not peel off after more than five years.
6. Titan removable gooseneck bottom plate is a 5mm checkered plate, which is thicker than the 4mm bottom plate used by other factories. The bottom plate is strong and durable, and it is not easy to deform.
7. Titan uses a 16-ton brake system axle; TITAN's axle has 9 years of experience in production quality, with better carrying capacity and good braking effect. Other factories adopt 13-ton brake system axles.
8. The braking system, effective braking, fast braking response, braking distance reduced by more than 5 meters. You can also choose the brake system of wacbo.
9. Tires, the tires used by Titan have been cooperating with the company for more than 12 years. stable quality. 200,000 kilometers can be used in China, and there is no problem at all after two years of use.
10. Professional packaging solutions. Total bulk cargo and ro-ro ships will be waxed and covered with rain cloth.

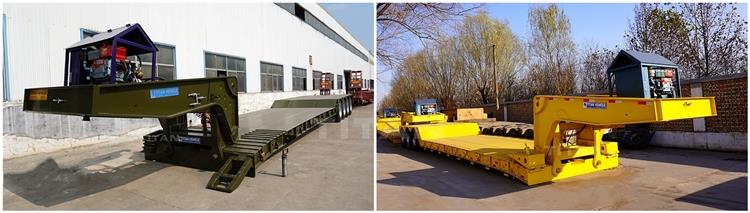

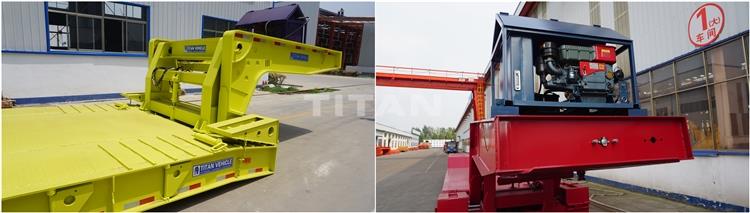

The gooseneck of the removable gooseneck trailer
1.The lower working platform height for transport of high and voluminous loads. Low working platform: Hydraulic gooseneck lowboy trailer, easy for construction equipment. Generally the height is up to 650mm to 850mm.
TITAN removable gooseneck trailer is with high tensile steel frame to ensure high load requirements on the bad road condition. High tensile structure steel with tensile and durable construction. Main beam adopts HG high strength steel, with high loading capacity. The yield strength of HG60 steel is ≥620Mpa, which is the yield limit of the metal material when it is yielded,the yield strength is higher, then it's much stronger.
So HG60 loading capacity is 5 times more than the trailer which is built by Q345 steel. Because the yield strenghth of Q345 steel is just 345Mpa
The side beams are designed with "H" shape and welded with HG 60 steel
2. Main beam adopts submerged arc welding technology, that ensure the smooth, sturdy welding seams and avoid welding-opening problems. And also improve the loading capacity. Main beam height is 550-580mm. The front/down plate width is 220mm, and thickness is 22mm. That durable and stronger construction ensure the loading capacity, and also improve its capacity to twisting forces, shock, bump, and meet load requirements on bad road condition.

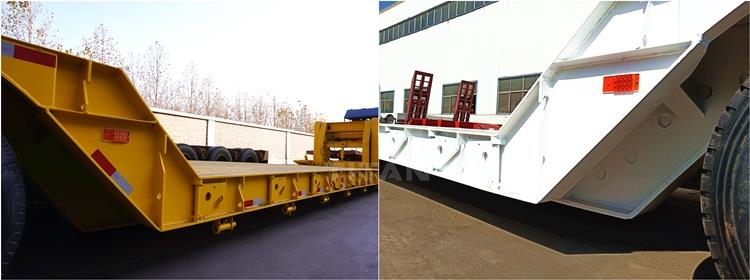

3. Side beam adopt “H” steel, height is 300mm, width is 140mm, and its thickness is 8/6/8mm. The durable design avoid the side beam to have the deformation. Side support’s thickness is 6mm, the distance of the side support is only 450mm. The side support firmly connect the main beam and side beam to improve the whole vehicle's loading capacity, prevent the working platform to have cave the deformation.
4. The loading ramps is made by high strength steel, with high loading capacity, will not happen to the deformation when carry heavy equipment. The suspension width is 120mm, thickness is 10mm, and rotation pin of suspension we use 70mm. Ensure its have high loading capacity, and increase its capacity to twisting forces, shock, bump.

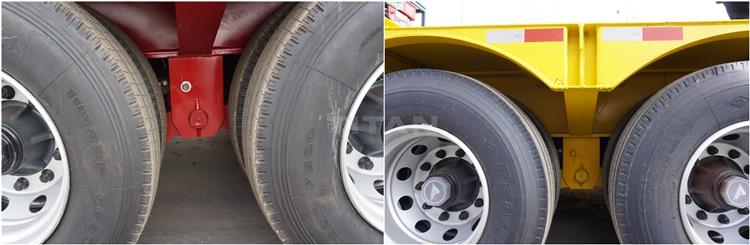

suspension of the removable gooseneck trailer
There are many types of removable gooseneck trailers in TITAN. Each type of trailer has a specific purpose, and because of this, the weight of each trailer can haul is different.
Trailer Weight Chart:
Trailer Type: 3 Axle Removable Gooseneck Trailer; Average Load Capacity (lbs.): 50ton, 60ton, 80ton; Parameters: 14500mm*2500mm*3000mm(50ton); 15800mm*3000mm*2500mm(60ton, 80ton)
Trailer Type: 4 Axle Removable Gooseneck Trailer; Average Load Capacity (lbs.): 100ton, 120ton, 150ton; Parameters: 16500mm*3000mm*2500mm(100ton); 17000mm*3000mm*2500mm(120ton, 150ton)
4 axle removable gooseneck trailer VS 3 axle removable gooseneck trailer
The removable gooseneck trailer is a simplified lowbed trailer type for commercial usage. Despite being of great use in solving many sophisticated issues, the previous gooseneck trailer designs still had issues with the connecting assembly that was found to be complex. As a result, the Removable Gooseneck trailer was designed to save space and make use of lighter units through a hinged frame assembly.
In more detailed terms, the removable gooseneck trailer offers a hinged frame assembly that connects a low-bed trailer type to a tractor. This assembly is simple in construction and more than that, it is lighter in weight and more compact than other assemblies of this type used for similar applications. The design is meant to provide a hinged frame assembly, that has a draft member in one end connected to a pivot-able fifth wheel of a tractor
The other end has a base member pivot-ably linked, so that the actuation of an actuator linked between the base member and the draft member at a point on the base member above the first point, causes the raising or lowering of the front end of a lowboy trailer usually attached to the base member bottom.

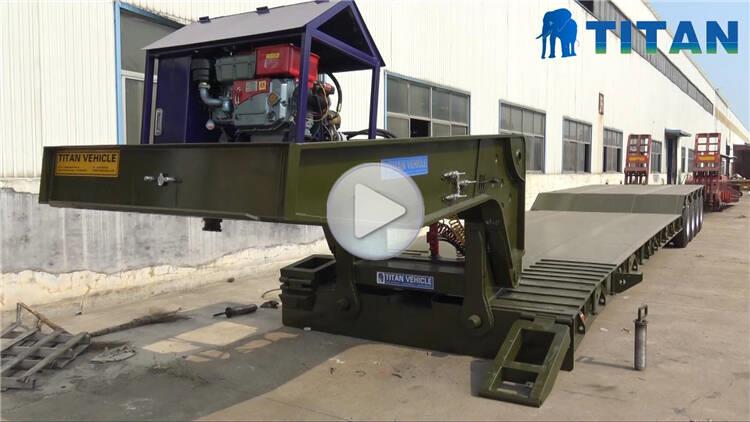

You can download video, you can learn about different types of removable gooseneck trailers (like 60ton/80ton/100ton/120ton/150ton removable gooseneck trailer). And the process, testing, packaging and customer feedback, etc.
