A semi low loader trailer is a type of heavy-duty trailer used for transporting tall and oversized equipment, such as construction machinery, wind turbine blades, and oil rig components. A semi low loader has a lower deck height than a standard flatbed trailer, which allows it to carry taller cargo without exceeding maximum legal height limits. The "semi" part of the name refers to the fact that the trailer is designed to be pulled by a semi-truck tractor unit.
The main beam of TITAN semi low loader trailer is made of HG60 high strength structural steel. It is more durable and stronger than ordinary steel. Accessories of TITAN low loader trailer are all international famous brands, such as JOST landing gear, Fuwa axle, WABCO valve and so on.
The price of a semi low loader trailer can vary widely depending on various factors such as the manufacturer, size, capacity, features, and materials used in its construction. Generally, the cost for a new semi low loader trailer can range anywhere from $12,000 to $29,000 or more.
It's important to note that the prices mentioned above are just general estimates and can vary based on many factors. If you're interested in purchasing a semi low loader trailer, we can recommend the size and configuration suitable for you according to your needs.
Prices for several common models are listed below:

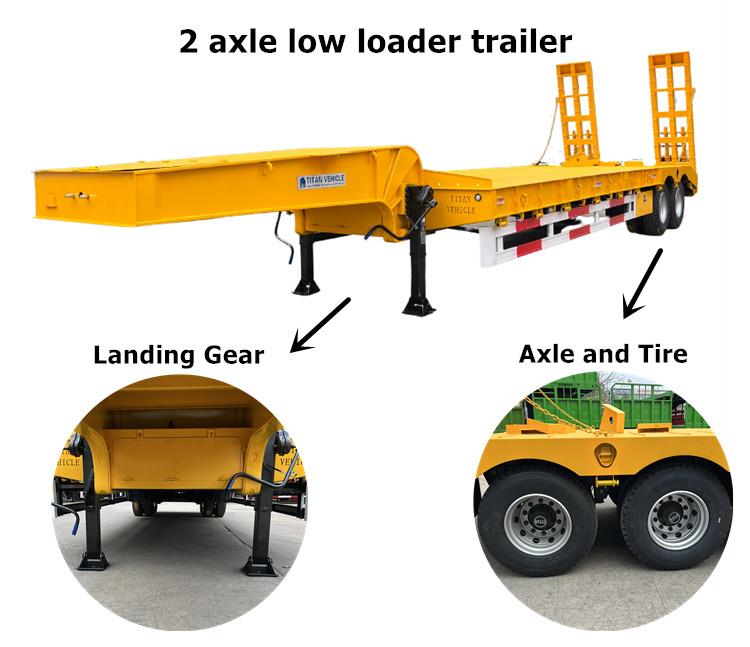

40 ton 2 axle low loader for sale: 12800 USD

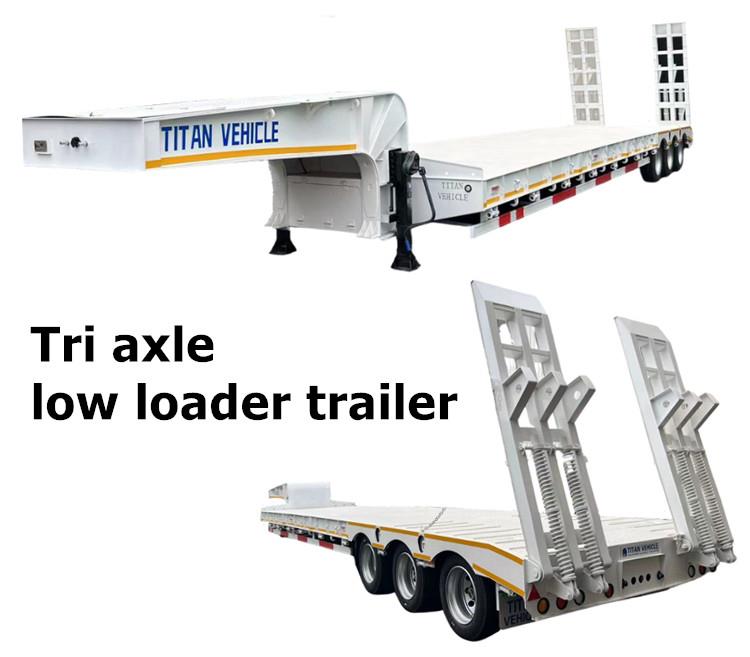

60 ton tri axle low loader trailer: 16600 USD

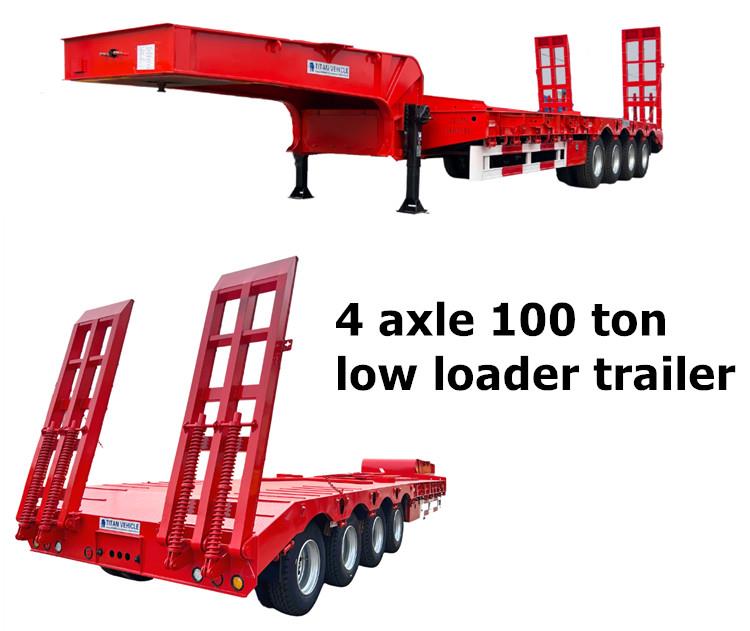

4 axle 100 ton low loader price: 22000 USD
Customized heavy duty low loader trailer over 100 tons, welcome to inquire!
Semi low loader trailer dimensions
2 axle low loader for sale dimensions: 13000*2500*2900mm
3 axle low loader trailer dimensions: 14000*3000*3400mm
4 axle low loader for sale dimensions: 15800*3000*3400mm
Low loader trailer loading capacity
2 axle semi low loader trailer capacity: 30-40 ton
Tri axle low loader trailer capacity: 40-80 ton
4 axle low loader loading capacity: 80-120 ton
Semi low loader trailer wide
Most popular low loader trailer width: 3000m. Can be customized if you have special needs.
low loader trailer length
TITAN semi low loader length is 11.5m - 17.5 m, customize to your needs.
Semi low loader trailer weight
2 axle low loader for sale: 9-11 ton
3 axle low loader trailer: 10-12 ton
4 axle low loader for sale: 11-13 ton
A low loader trailer has several advantages over other types of trailers. The main advantage is its ability to transport heavy and oversized equipment or machinery that cannot be transported using a standard trailer due to their size or weight.
The low height of the trailer deck allows for equipment with a high center of gravity, such as bulldozers, excavators, or cranes, to be loaded and transported safely with minimal risk of tipping over during transit. This is because the low deck height lowers the overall height of the load, which reduces the risk of toppling.
Another advantage of a low loader trailer is its exceptional stability and maneuverability. Due to its design, it has a lower center of gravity than other trailers, making it more stable on the road. Additionally, its detachable gooseneck provides greater maneuverability, allowing for easier loading and unloading of the cargo.
Furthermore, the semi low loader for sale can be customized to meet specific cargo transportation requirements. It can come in various lengths, widths, and heights depending on the size and weight of the cargo being transported. This makes it an incredibly versatile trailer for a variety of industries, from construction to agriculture and mining.
Details of TITAN low loader trailer for sale

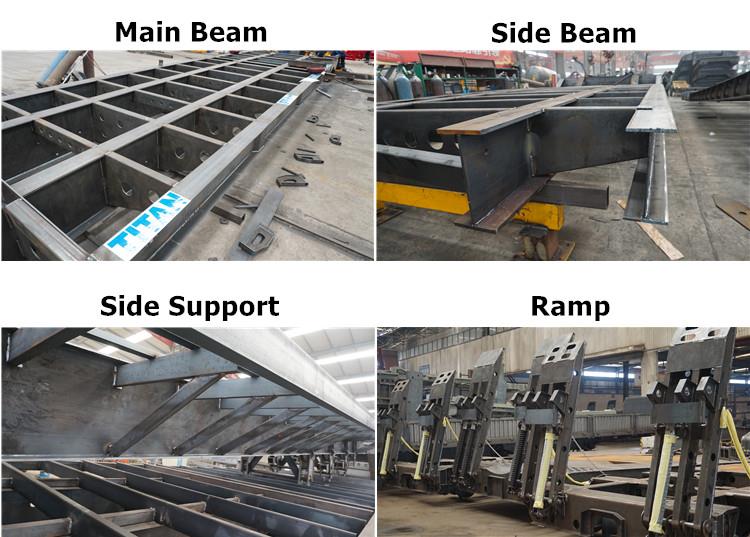

1. The main beam of TITAN semi low loader trailer is made of HG60 high strength structural steel, and height of 550mm and a thickness of 14mm. The thickness of upper plate is 22mm, the thickness of lower plate is 22mm and the width of upper and lower plate is 220mm.
2. The side beam adopts "H" shape design and is welded with T700 steel and it is designed H shape with a height of 300mm, width of 140mm and thickness of 8mm. Its bearing capacity is twice that of other steel, and it will not deform after ten years of use.
3. The beam design, our beam use HG60 high strength structural steel. The thickness is 6mm, and the inclined support is HG60 with a thickness of 6mm. Effectively connect the main beam and side beam together as a whole. Bearing capacity anti - turbulence capacity greatly increased, TITAN low loader trailer service life more than 10 years.
4. The ramp of TITAN semi low loader for sale is welded with H60 steel of high strength steel plate, which has strong bearing capacity and effectively ensures that the weight of excavator or other heavy equipment can pass through the spring ramp without deformation or damage. The service can up to more than 5 years.
