Successful Case

40ft Shipping Container Flat Bed Trailer will be sent to Botswana

40ft Shipping Container Flat Bed Trailer for Sale in Botswana

40ft Shipping Container Flat Bed Trailer will be sent to Botswana



Botswana customers learn about us from local customers. The customer saw TITAN 40ft flat bed trailer locally and learned a lot about the container flat bed trailer and TITAN with local customers, including the details such as the configuration and loading of the 40ft shipping container flat bed trailer.

Then the Botswana customer ordered 2 units flat bed trailers from TITAN because shipping together saves on ocean freight.

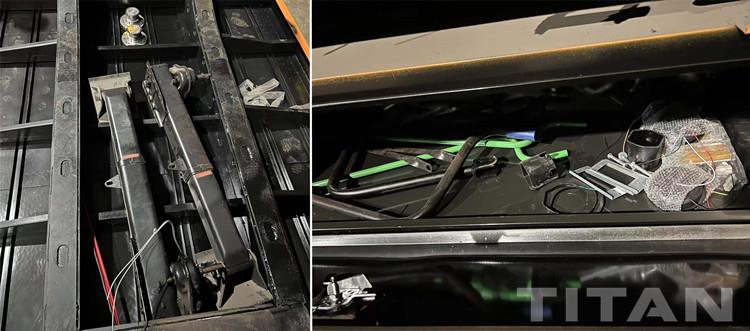

The Botswana customer’s 2 units 40ft shipping container flat bed trailer has just been completed and can be shipped to Botswana. Below is the package picture of 40ft container flat bed trailer. TITAN also gave away enough spare parts.



40ft Shipping Container Flat Bed Trailer for Sale in Botswana

Spare Parts of 40ft Shipping Container Flat Bed Trailer for Sale

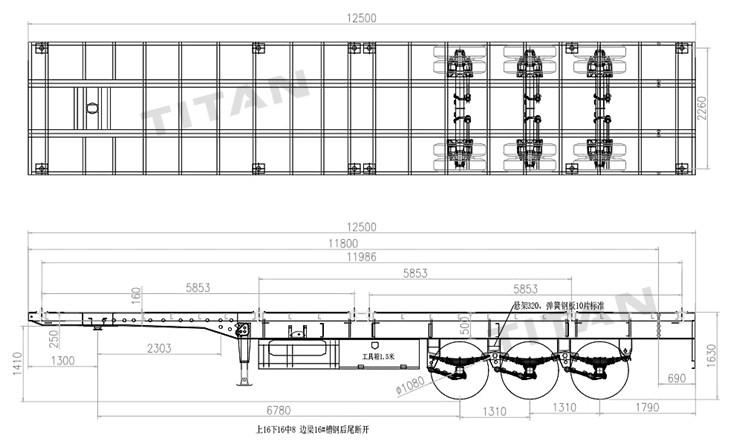

Detailed explanation of the 40ft container flat bed trailer

1. Frame:

Main beam: We adopts the low carbon high strength alloy steel T700 to make the main beam , it has a higher carry capacity and service life of more than 10 years.

Bottom plate: The floor plate is the 3 mm and it’s diamond plate, It is thicker than the 2.5mm or 2mm floor plate of other factories. The floor plate is strong and durable, and is not easy to deform.

Side beam: The thickness of the side beam we made is 160mm, 100mm channel for through beam, and all of the through beam are supported by the Inclined support frame, and the distance of these frame no more than 500mm, which can ensure the shipping container flat bed trailer not easy to deform.

Under beam: TITAN tri axle 40ft flat bed trailer have 6 beams under the floor plate, effectively ensure the flatness of the floor plate.



2. Welding process:

We use automatic submerged arc welding process to weld the main beam. There is no interface between the upper, middle and lower plates of the beam, so it can ensure the integrity of the main beam and make the beam more solid and durable.



40ft Shipping Container Flat Bed Trailer for Sale in Botswana

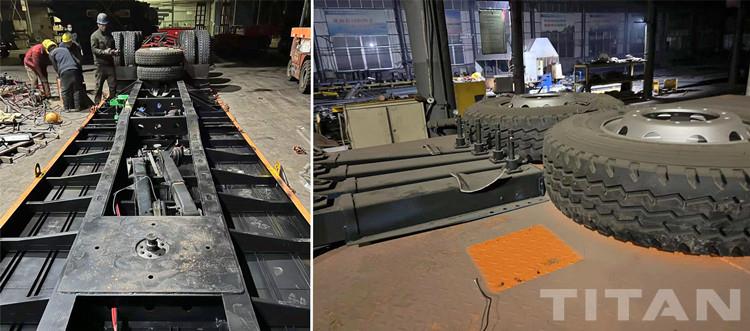

Details of 40ft Shipping Container Flat Bed Trailer for Sale in Botswana



3. Parts:

We adopts the best parts for our trailer, such as the axle with 16 tons brake system, 3mm base plate, etc. with longer service life.

Landing gear: TITAN optional Jost landing gear which is a world recognized famous brand accessory with a better bearing capacity and long service life

Suspension: We use the reinforced suspension on our 40ft container flat bed trailer, 70mm center balance pin. In the front and rear of the suspension, left and right are reinforced. A separate focus on road conditions in Africa, addressing dirt and poor road conditions

For some other factories, they use the light type suspension, the center pin is 45mm only, will make a short service life and lead to serious tire wear.

40ft Shipping Container Flat Bed Trailer for Sale in Botswana

Axles: We used a 16 ton brake axle ;TITAN's vehicle axle has 9 years of experience in production quality, better bearing capacity and good braking effect. Other factories use 13 ton brake system axle.

Tires: We has been using tires with the company for more than 12 years. The quality is very stable. In China, it can use 200,000 kilometers for two years without any problem

Braking system: Effective braking, fast braking response, braking distance reduction of more than 5 meters. Also available is the WABCO braking system

Brake pipe: TITAN flat bed trailers brake pipe is a high-pressure rubber pipe, the service life of more than 10 years. Wires are made of cables. Service life over 5 years. Other home is used on the ordinary pair of windpipes and wires, service life of about 1 year.



4. Paint:

We adopts the Polyurethane paint for all of our 40ft flat bed trailers which has high adhesion, more beautiful color,  and the cost is twice of ordinary paint. But the paint will not fall off after more than five years of use.



You can download video, you can learn about different types of flatbed semi trailer, such as 2 axle flatbed semi trailer,3 axle container semi trailer,4 axle 40ft flatbed semi trailer, etc. As well as the process, testing, packaging and customer feedback, etc.

Welcome to download our quotation, if you have other questions, please contact us
