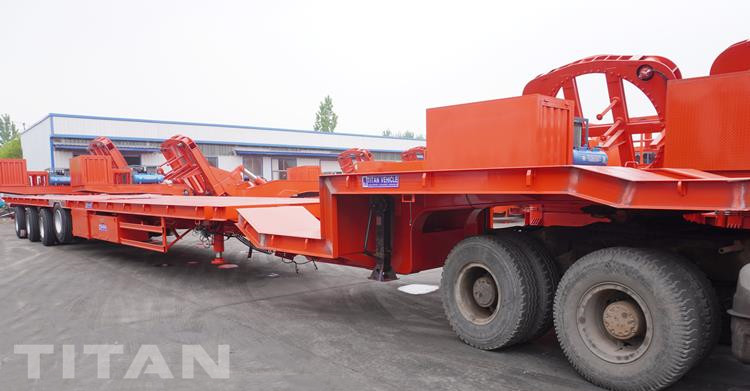

56m Extendable Windmill Blade Trailer for Sale in Kazakhstan
Kazakhstan customers saw the feedback from our Vietnamese customers on Google and the use of extendable windmill blade trailer. The customer immediately found the sales manager Jacky to inquire about the functions and details of the extendable trailer. Because the customer's current project needs to transport 70 meters of wind blades.
Jacky recommends the 4 axle 56m extendable trailer, ideal for hauling windmill turbine blades from 45m to 80m long and long bulk cargo. Customers say they have never seen such a professional supplier. So he made up his mind to customize his 56m windmill blade trailer at TITAN.
About the extendable trailer, our company has produced the Max.70m stretchable length that we are leading the technology of extendable windmill blade trailer in China manufacturers. Also, the extendable trailer can be customized by 3 axles or 6 axles 9 axle, 10 axle even more. TITAN extendable windmill blade trailer has significant advantages of the extendable trailer which compares with it made by other Chinese manufacturers.
56m Extendable Windmill Blade Trailer for Sale in Kazakhstan
The extendable trailer is lengthened by the traction structure, and the wind blade is placed flat on the top of the trailer.

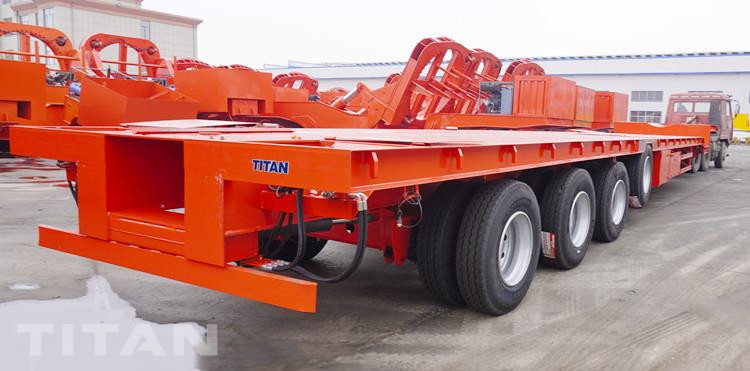

The distinguishing feature of the windmill blade trailer is that it is extra-long and has longitudinal scalability. Due to the extra length of the model, the difficulty of turning is significantly increased. To overcome cornering, the 4 axle 56m extendable trailer is generally equipped with hydraulic steering system, and the rear axle is equipped with a power station.

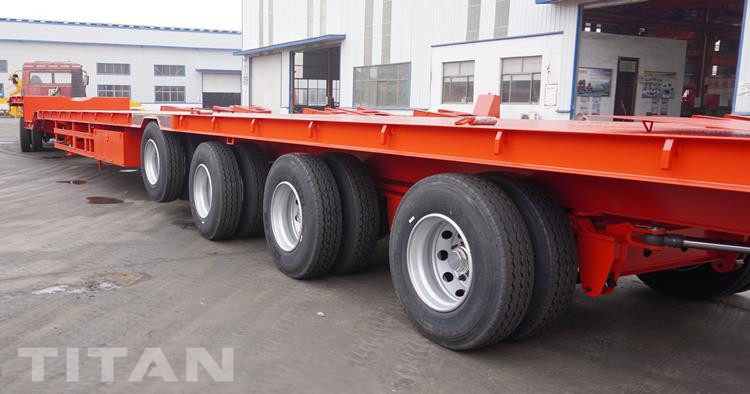

Taking into account the stability and length of the windmill blades, the rear axle adopts its air suspension system, and the longitudinal beams can be drawn freely and have good passability.
The extendable windmill blade trailer of the blade can be more than 60 meters long. It has a three-axis or four-axis balance type, remote control power steering, and a mass balance block is installed between the front and rear leaf springs, which can uniformly change the deflection of the front and rear leaf springs and balance the front and rear forces. rear axle.
56m Extendable Windmill Blade Trailer for Sale in Kazakhstan
The bearing capacity is designed to be more than 60 tons, the main frame is 550mm high and 300mm wide, the girder is buckle box type, the side beam is 250mm I-beam, and the minimum cargo capacity surface is 850mm.
It can transport other types of oversized cargo, not just blades and towers. Therefore, users can use the extendable windmill blade trailer for many other purposes than transporting wind turbine blades.
It's easy to use. The extendable trailer features a simple design that is easy to use and operate manually or remotely. Loading and unloading cargo becomes safe and simple, and operators can easily manage operations.

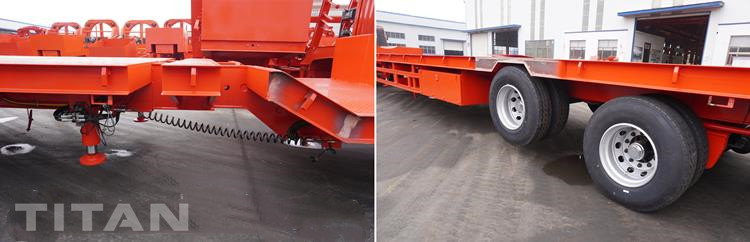

The extendable windmill blade trailer can be extended up to 62 meters. Sliding pneumatic locking system for telescopic arms on both sides. The reels are air brake hoses and wires that ensure the braking and lighting systems work when the telescoping beam is extended.
56m Extendable Windmill Blade Trailer for Sale in Kazakhstan
This mode of transportation generally uses ordinary extendable trailers to transport fan blades. The feature of this vehicle is that it can be longitudinally extended to adapt to the transportation of blades of different lengths. It can be directly transported from the manufacturer to the fan station, but it is difficult to turn due to the long turn of the vehicle.
A significant advantage of this 56m windmill blade trailer is that it better matches towers of different sizes. Therefore, users are not restricted to a specific type and size.

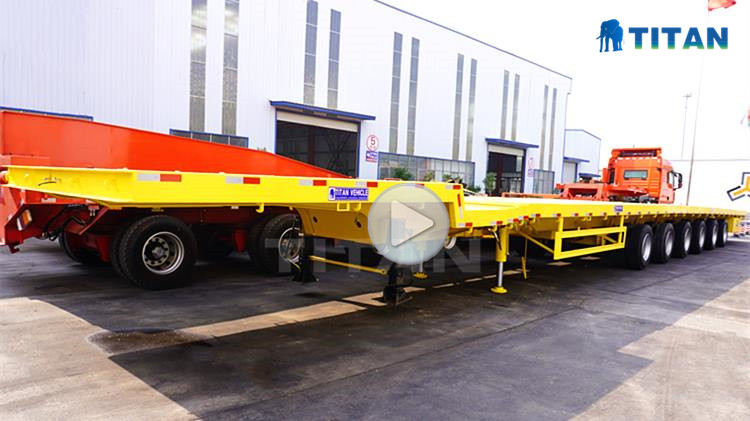

Here is the Extendable Trailer transportation details display video. This kind of semi trailer was designed with lots of advantages and features. If you want to get more information, please don't hesitate to make contact with us.
