10 Axle Extendable Lowbed Trailer
10 Axle Extendable Lowbed Trailer

10 Axle Extendable Lowbed Trailer

61530 USD

Different Parameters, Different Price. Price Reference Only.



10 Axle Extendable Lowbed Trailer is easy to use. The trailer is widely used to transport wind towers and other heavy loads in Vietnam.

SKU: 10 Axle Extendable Lowbed Trailer
MPN: TITAN9403058
Brand: TITAN

10 Axle Extendable Lowbed Trailer Product Description:

10 Axle Extendable Low bed Trailer is easy to use. The extendable low bed trailer comes in a simple design that is easy to use and operate either hands-on or remotely. Loading and offloading cargo are made safe and simple for operators to manage the operations in an effortless manner. It can transport other kinds of oversized cargoes, not only the blades and tower. Therefore, the user can put the trailer into many other uses other than for transporting wind turbine blades. Reliable and Efficient. Constructed of high yield strength material, telescopic trailers are reliable in terms of safety and general transportation needs. Owing to its ability to carry both wind turbine blades and windmill towers loads, it gives the user and efficient option for transportation.

10 Axle Extendable Wind Tower Trailer for Sale in Vietnam

10 Axle Extendable Lowbed Trailer for Sale in Vietnam

10 Axle Extendable Wind Tower Trailer for Sale in Vietnam

10 Axle Extendable Lowbed Trailer for Sale in Vietnam

10 Axle Extendable Wind Tower Trailer for Sale in Vietnam

10 Axle Extendable Lowbed Trailer for Sale in Vietnam

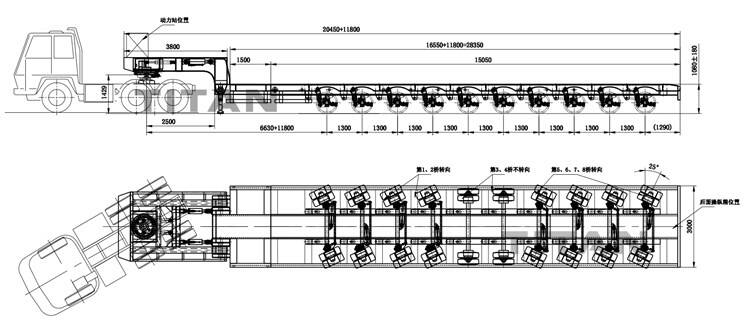

Specification´╝Ü

Dimension(L*W*H): 18,500mm X 2,990mm X 950mm ( closed state)

33,500mm X 2,990mm X 950mm ( extension state)

Deadweight without ramps: 28.5 Ton

Deadweight with ramps: 29.5 Ton

Frame: HG60 high strength steel frame

Loading capacity: 90 Ton

Length: 18,500mm at closed state; 33,500mm after total extended

Width: 2,990mm + 2 X 250mm side swing bracket

Height: 200mm+/-90mm

Axle: 10 Axles, one axle fixed and 8 axles steerable

Maximum steering angle: +/-25°

Tyre: 40 units, 215/75R17.5

Gooseneck: Hydraulic gooseneck

Suspension: Hydraulic lifting suspension (only for adjusting the platform levelling needed)

Hydraulic power station: 1 set,12Kw diesel engine

Loading Ramps: 1 set, detachable ramps

Landing gear: JOST C200

Operation 2 wireless remote control: + 1 control valve panel

10 Axle Extendable Wind Tower Trailer for Sale in Vietnam

Advantages

1. 250mm wideners are equipped on both sides of the load-bearing platform; the length of the load-bearing platform is 14.5m, with a 2-level tensile structure, which can stretch 7500x2 to meet the requirements of 29m after the freight platform is stretched;

2. The gooseneck is a power gooseneck, with a device for adjusting the height of the cargo platform and setting the steering part of the axle;

3. The suspension is hydraulic suspension, with lifting function, the force between the axles is balanced by the suspension cylinder, and it has the function of lifting the axle independently;

4. This car has 9 axles, and the axles include 8 active steering axles, 4 in the front and 4 axles in the back; The tires are 235/75R17.5;

5. The active steering axle is controlled by hydraulic cylinders.

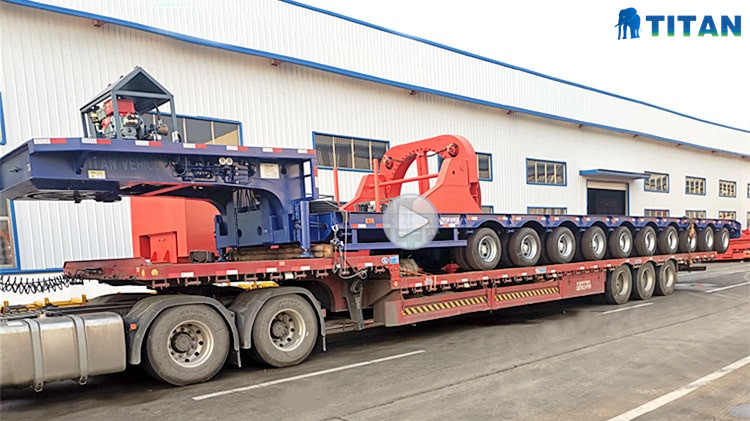

10 axle extendable low bed trailer details display video

Please click "TITAN Wind Blade Trailer" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
