120ton Removable Gooseneck Semi Trailer
120ton Removable Gooseneck Semi Trailer

120ton Removable Gooseneck Semi Trailer

29700 USD

Different Parameters, Different Price. Price Reference Only.



A 120ton Removable Gooseneck Trailer is a type of trailer that has features of a semi-trailer combined with a double-level drop system.

SKU: 120ton Removable Gooseneck Semi Trailer
MPN: TITAN9902008
Brand: TITAN

Product Description:

A removable gooseneck trailer is a type of trailer that has features of a semi-trailer combined with a double-level drop system.  These trailers are more versatile than flatbed trailers or semi-trailers, as they can haul and carry equipment of up to 12 feet in height and between 40,000 and 80,000 pounds.  Depending on the style of removable gooseneck trailer chosen, the deck height can be adjusted to drop at the gooseneck or before reaching the wheels.

Removable gooseneck semi trailers are often utilized for transporting heavy machinery, such as bulldozers, excavators, backhoe loaders, and other types of heavy equipment.  Items that do not fit onto a flatbed trailer or a single-drop deck trailer can typically be hauled via a lowboy trailer.

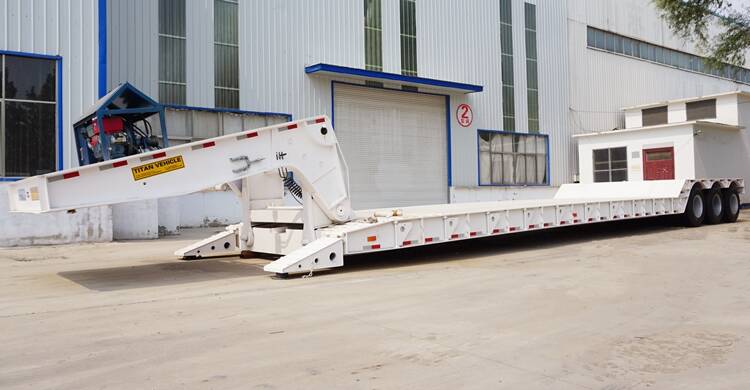

120ton Removable Gooseneck Trailer for Sale in Zambia

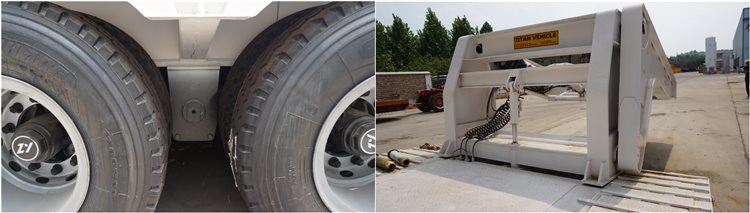

120ton Removable Gooseneck Trailer for Sale in Zambia

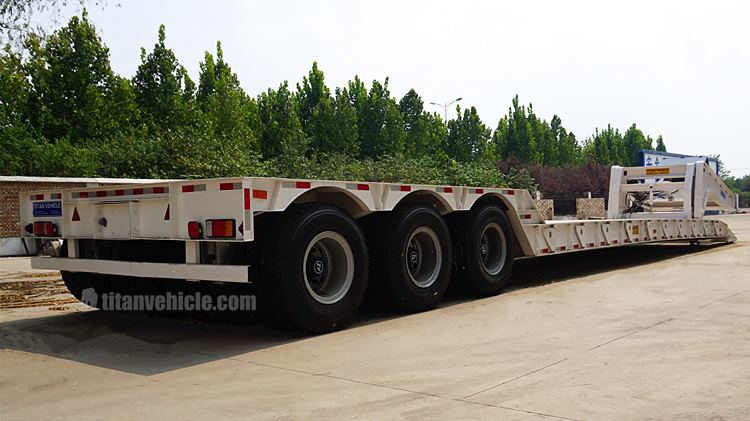

120ton Removable Gooseneck Trailer for Sale in Zambia



Specification:

Dimension: 17000mm x 3000mm x 2500mm

Loading capacity(T): 50-150T

Axle: 3 line 6 axle

Tire: 24 units, 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension or air suspension

Spring leaf: 120(W)mmx16(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Tare weight: About 9.5-19T

Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.

Bottom Platform: 5mm thick, checkered plate

Hydraulic cylinder: 12KW diesel engine with hydraulic station

Ramp: spring or hydraulic type

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust



Advantages:

1. Strong carrying capacity

Most of this type of Gooseneck Lowboy Trailer has large tonnage, so the body is mostly designed with an arched cargo bed, and the longitudinal beams are mostly multi-longitudinal high-strength steel structures, which reduces the weight and improves the carrying capacity.

Lowboy trailer's main beam of TITAN is made of HG60 high-strength structural steel. The yield strength of HG60 steel is ≥ 620MPa, which is more durable and stronger than ordinary steel. Its bearing capacity is 5 times of that of Q345 steel trailer. TITAN lowboy trailer adopts reinforced the gooseneck and upper and lower plate by double layer.

2. Low center of gravity and good stability.

Due to the low ground clearance and low longitudinal beam height of this kind of Gooseneck Lowboy Trailer, the load-bearing surface is 300-400mm lower than that of the normal concave-center removable lowboy semi-trailer, thereby effectively reducing the height of the center of gravity of the loaded goods and improving the stability during transportation.

Oilfield trailers bottom plate, Other suppliers usually use 3 or 4 mm bottom plate, But TITAN adopt 5 mm thick bottom plate, It’s more durable and won’t be deformed.

3. Good performance

The cargo bed load-bearing surface of the lowboy trailer can be adjusted to the ground height by a hydraulic device as needed, and when it passes through culverts or bumpy roads, the cargo bed load-bearing surface can be lowered or raised to improve its passing performance.

4. The effective length of the cargo bed is long

Because this type of model eliminates the rear ladder, the bearing surface can be lengthened, and because the construction machinery does not go from the rear, the slope angle in front of the bridge can be appropriately increased, so that the bearing surface can be lengthened. The length of the low flat cargo table with a ladder at the end is longer, which can effectively load more loads, indirectly improve the loading efficiency, and create greater benefits for users.

5. Easy maintenance

Because the bearing surface can be raised and lowered, the tires on a bridge can be grounded, and other tires can be safely and conveniently replaced or other maintenance work without detaching.

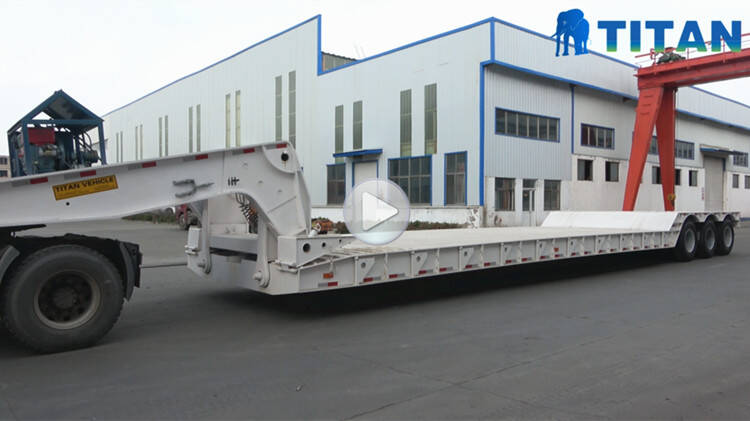

Through the video, you can know different types of 120ton removable gooseneck trailer , 3 line 6 axle removable gooseneck , removable gooseneck trailer for sale, etc.

Please click "TITAN Removable Gooseneck Trailer" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
