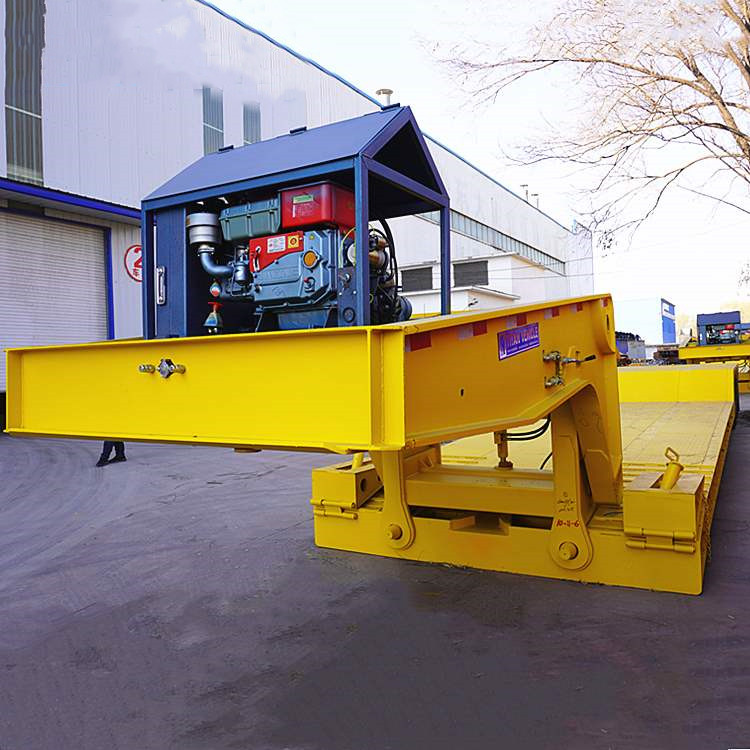

3 Axle Removable Gooseneck Trailer
3 Axle Removable Gooseneck Trailer

3 Axle Removable Gooseneck Trailer

27000 USD

Different Parameters, Different Price. Price Reference Only.



3 Axle Removable Gooseneck Trailer produced by TITAN manufacturer, it can provide different types of removable gooseneck trailers, detachable gooseneck trailers, lowboy gooseneck trailers.

SKU: 3 Axle Removable Gooseneck Trailer
MPN: TITAN9402055
Brand: TITAN

3 Axle Removable Gooseneck Trailer Product Description:

TITAN brand removable gooseneck trailers are available in a variety of styles. Basically, almost all TITAN trailers available in bumper pull or pin ring versions can be purchased in removable gooseneck trailer versions. This includes our garden tool trailer, car trailer and mudguard equipment trailer line.

A removable gooseneck trailer, on the other hand, is often owned by a trailering veteran. A gooseneck can easily be confused with a fifth-wheel trailer because the two hitch types are quite similar. The difference is a removable gooseneck trailer slides over a ball hitch in the bed of a pickup truck, while a fifth wheel trailer attaches to a pickup truck using a hinged plate hitch, the same type of hitch is used by semi trucks.

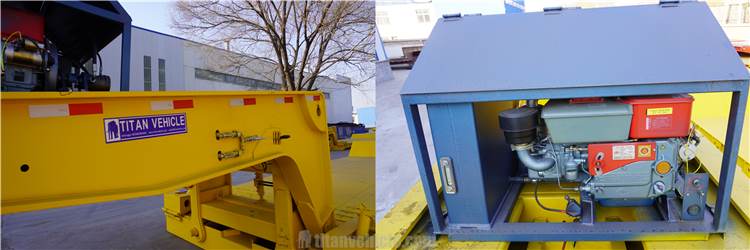

3 Axle Removable Gooseneck Trailer Near Me in Malaysia

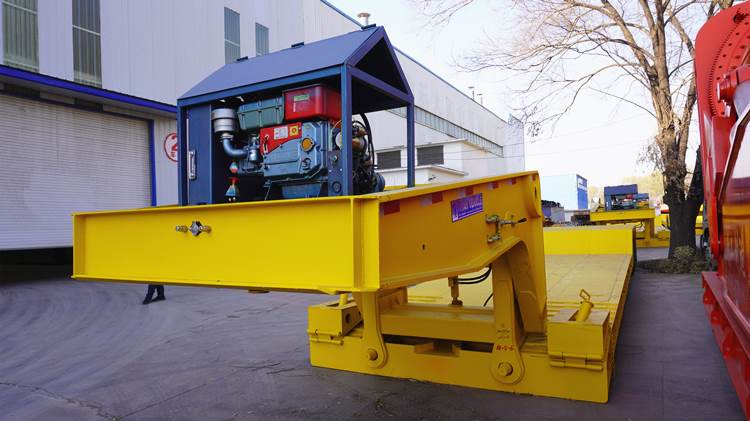

3 Axle Removable Gooseneck Trailer Near Me in Malaysia

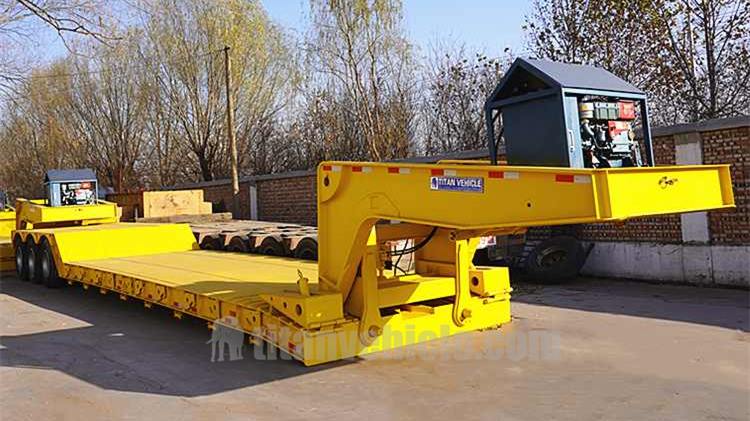

3 Axle Removable Gooseneck Trailer Near Me in Malaysia



Specification:

Dimension: 15800mm x 3000mm x 2500mm

Loading capacity(T): 50-150T

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20 or 900*22.5

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension or air suspension

Spring leaf: 120(W)mmx16(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Tare weight: About 9.5-19T

Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.

Bottom Platform: 5mm thick, checkered plate

Hydraulic cylinder: 12KW diesel engine with hydraulic station

Ramp: spring or hydraulic type

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust

Shipping terms: Transported by the bulk carrier in an RORO or 40HQ container

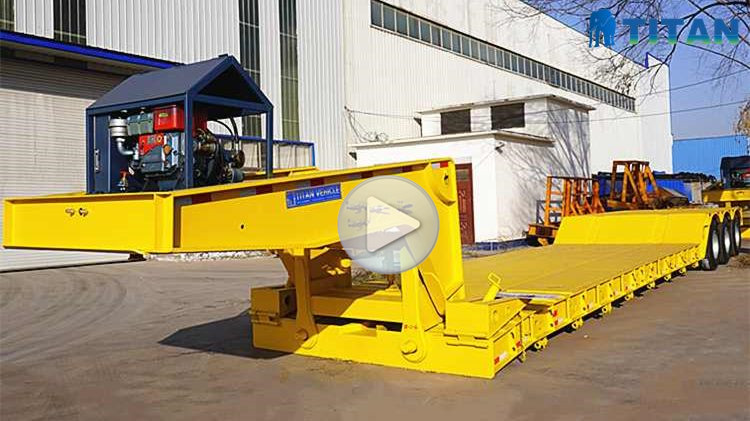

Through the video, you can know different types of 60/80ton removable gooseneck trailer , 3 axle removable gooseneck trailer for sale , removable gooseneck , etc.

Please click "TITAN Removable Gooseneck Trailer" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
