A 5 axle lowbed trailer is a specialized heavy-duty trailer that is designed to transport large and heavy loads, such as construction equipment, industrial machinery, and oversized cargo.
The 5 axle configuration means that the low bed trailer has five axles with a total of ten wheels to distribute the weight of the load evenly across the lowbed trailer. This configuration also allows for greater flexibility and maneuverability when transporting heavy loads over uneven terrain or through tight spaces.

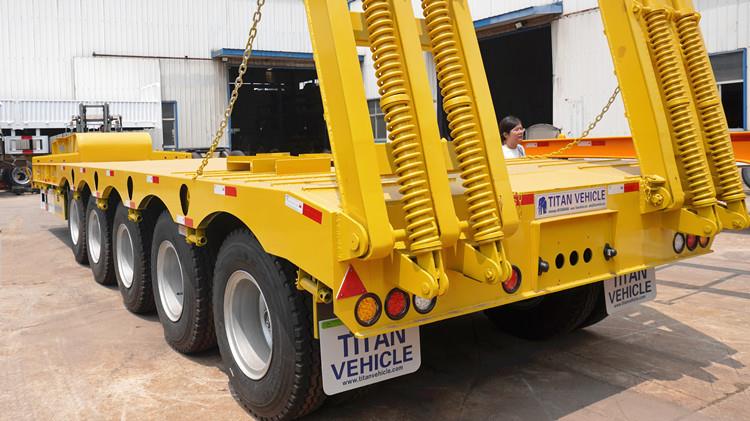

5 Axle Lowbed Trailer with a Capacity of 100tons and 120tons

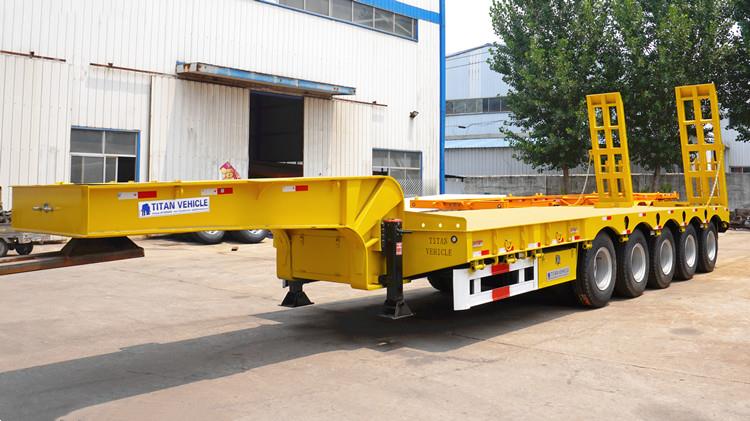

5 Axle Lowbed Trailer with a Capacity of 100tons and 120tons
Platform and Tool Box of 100 Ton Lowbed Trailer

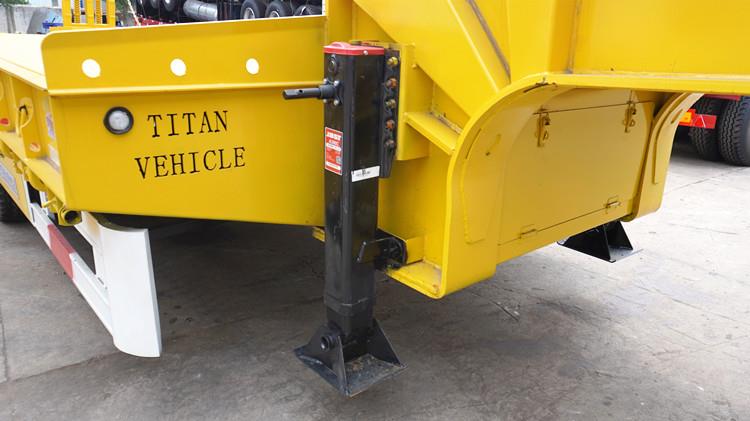

Landing Gear of 5 Axle Lowbed Trailer

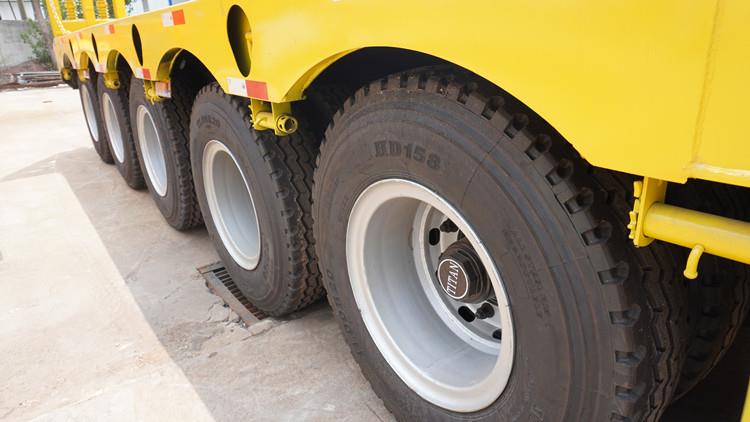

Axle and Tires of 5 Axle Lowbed Trailer

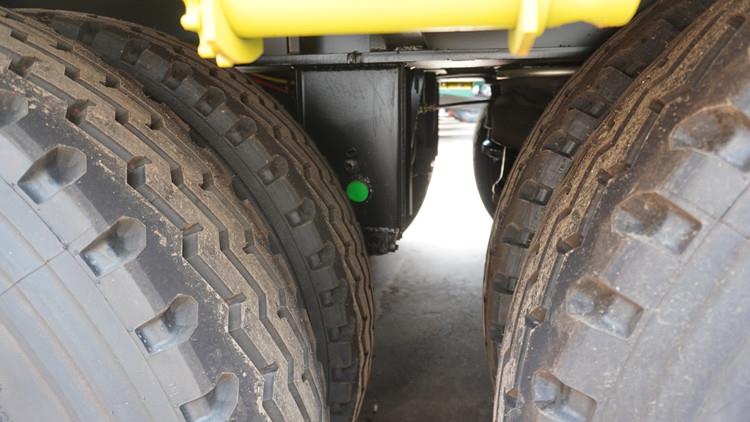

Suspension of 5 Axle Lowbed Trailer with a Capacity of 100tons and 120tons
Overall dimension: 16000mm*3000mm*3400mm
Loading capacity(T): 100-120 tons
Axle: 5 axle lowbed trailer, FUWA/BPW/TITAN Brand
Tire: 20 units, 12R22.5
Suspension: Hydraulic suspension
Ramp: Sping ramp

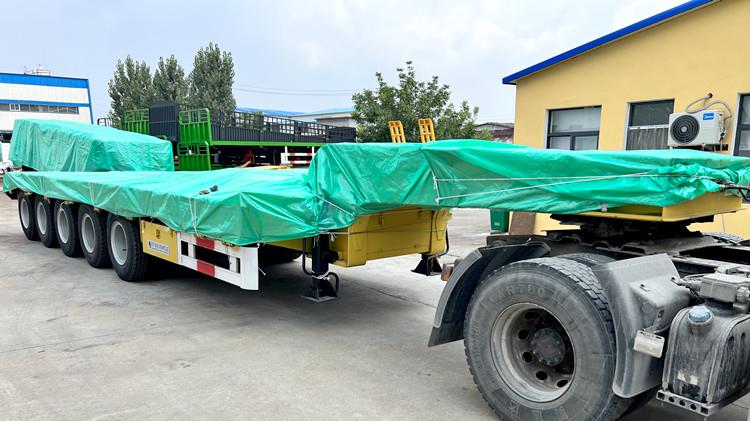

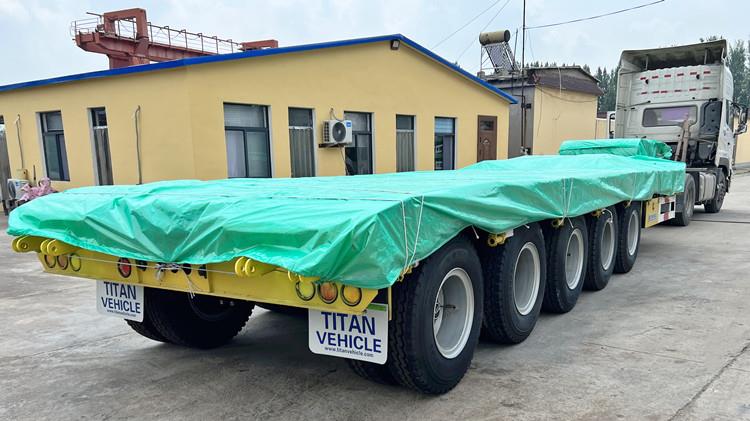

TITAN mainly used bulk cargo and container ways to transport the 5 axle lowbed trailer. After the lowbed trailer is sprayed with wax, TITAN will cover the whole body of the 100 ton lowbed trailer with a rain cloth. It can effectively prevent the surface of the lowbed trailer from being scratched during transportation, and protect the appearance of the trailer.
