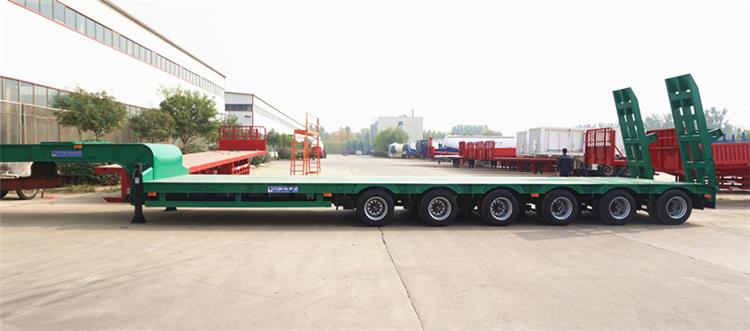

China 6 Axle Low Bed Trailer is usually used to transport a variety of machinery and equipment, construction equipment, large tank body, power station equipment, and various excavators.
China 6 Axle Low Bed Trailer is usually used to transport a variety of machinery and equipment, heavy equipment, highway construction equipment, large tank body, power station equipment, and various excavators, and are used to transport heavy vehicles.
Side support’s thickness is 6mm, the distance of the side support is only 450mm. The 6 Axle Low Bed Trailer side support firmly connect the main beam and side beam to improve the whole 6 Axle Low Bed Trailer Truck’s loading capacity, prevent the working platform to have cave the deformation.
China 6 Axle Low Bed Trailer Price in Namibia
60 ton Low Bed Trailer for sale
Spot discount, welcome to contact us
Overall dimension: 14500mm * 3000mm *3400mm
Loading capacity(T): 100T
Axle: 4 axles, FUWA / BPW / TITAN Brand
Rim: 8.0-20
Tire: 11.00R20
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.
Bottom Platform: 5mm thick checkered plate
Ramp: Spring ramp, hydraulic ramp
Gooseneck: Optional
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)

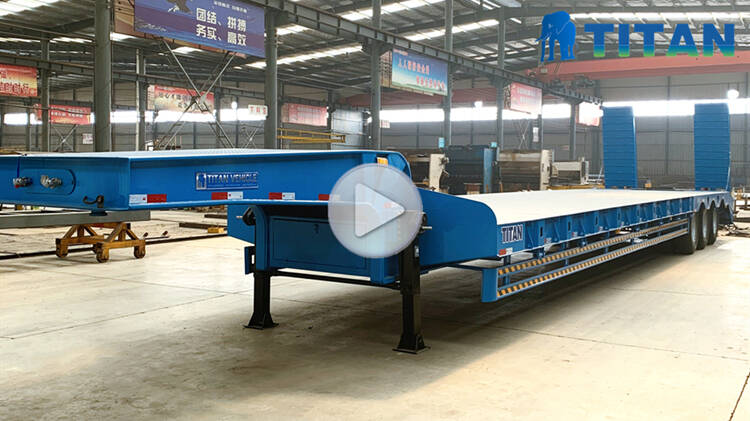

6 Axle Lowbed trailer details display video
Through this videos, you can learn about different types of lowbed semi-trailers,like 2axle,3axle,4axle lowbed semi trailer,hydraulic ladder lowbed semi trailer,etc.As well as the process, testing, packaging and customer feedback, etc.
Get more videos, Welcome to click " TITAN lowbed trailer" on Youtube
