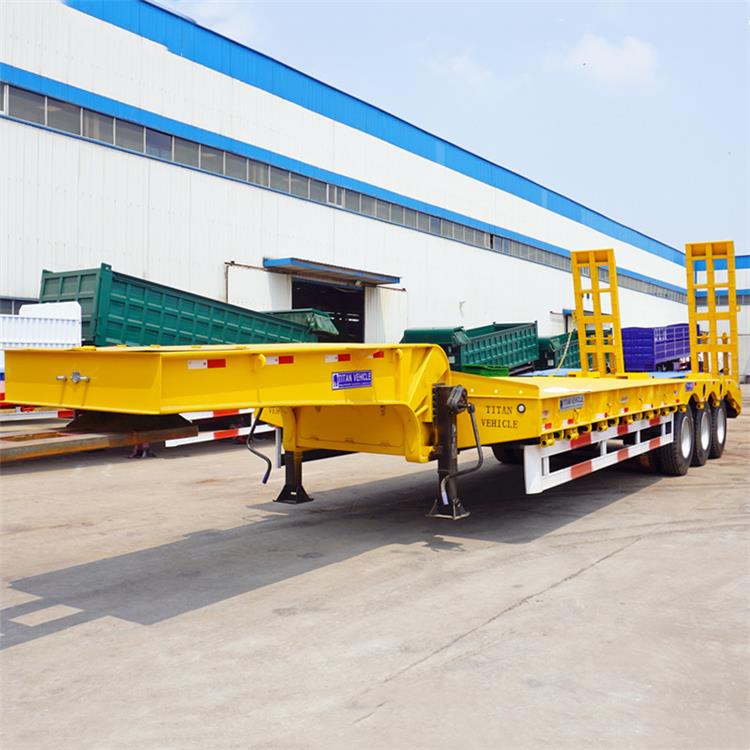

Tri Axle Lowboy Trailers
Tri Axle Lowboy Trailers

Tri Axle Lowboy Trailers

16800 USD

Tri axle lowboy trailers for sale are used in different industries: heavy vehicles, rail vehicles, mining machinery, forestry machinery, construction, agricultural, etc, We can customize the lowboy truck trailer for you according to your needs.

SKU: Tri Axle Lowboy Trailers
MPN: TITAN9901TDP011
Brand: TITAN

Description of lowboy trailers for sale near me:

Tri axle lowboy trailers for sale are used in different industries: heavy vehicles, rail vehicles, mining machinery, forestry machinery, construction, agricultural, etc, We can customize the lowboy truck trailer for you according to your needs.

The main beam of TITAN lowboy trailers for sale near me is made of Q460C high strength structural steel. Q460C steel has a yield strength of ≥620Mpa, which is more durable and stronger than ordinary steel. Its bearing capacity is 5 times that of the lowboy truck trailer made of Q345 steel.

Lowboy Truck | Tri Axle Lowboy Trailers for Sale Near Me

Lowboy Truck | Tri Axle Lowboy Trailers for Sale Near Me

Lowboy Truck | Tri Axle Lowboy Trailers for Sale Near Me

Lowboy Truck | Tri Axle Lowboy Trailers for Sale Near Me

Spot discount, welcome to contact us



Specification of tri axle lowboy trailers for sale:

Overall dimension: 13000mm * 3000mm *3400mm

Loading capacity(T): 60 ton lowboy trailers for sale near me

Axle: tri axle lowboy trailers for sale

Rim: 8.0-20

Tire: 12units, 11.00R20



Advantages of TITAN lowboy truck trailer:

1. Main Beam

TITAN tri axle lowboy trailers for sale main baem adopts a height of 500mm and a thickness of 14mm. The thickness of upper plate is 22mm, the thickness of lower plate is 22mm and the width of upper and lower plate is 220mm.

Other factories use Q345 steel main beam for the lowboy truck for sale. The width of the upper and lower plates is 140mm. The load-bearing capacity of the frame is 27% lower than that of TITAN.

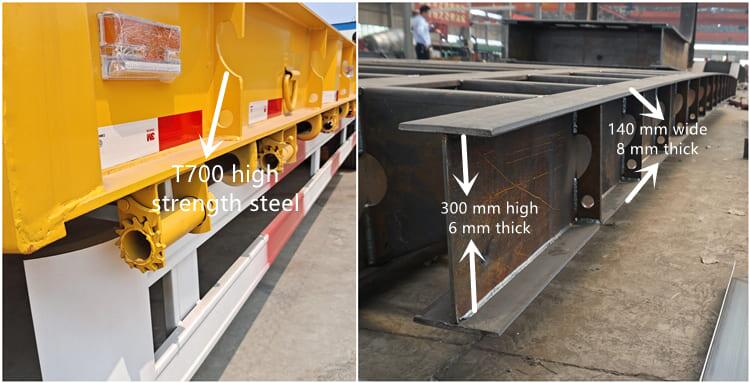

2. Side Beam

The side beam adopts "H" shape design and is welded with T700 high strength steel and it is designed H shape with a height of 300mm, width of 140mm and thickness of 8mm. Its bearing capacity is twice that of other steel, and it will not deform after ten years of use. Anti - turbulence ability increased about 3 times.

3. Side support

The beam design, our side support beam use Q460C high strength structural steel. The thickness is 6mm, and the inclined support is Q460C with a thickness of 6mm. Effectively connect the main beam and side beam together as a whole. Bearing capacity anti - turbulence capacity greatly increased, the service life more than 10 years.

All trapezoidal scales for the whole lowboy trailers for sale near me, G-type scales (higher strength than ordinary C-type scales) are used for the vehicle weighing less than 80 tons.

3 axle lowbed

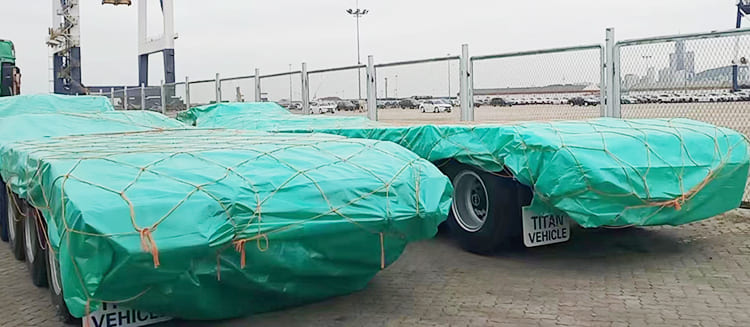

Package and delivery of lowboy truck trailer:

After the trailer is produced, all of TITAN tri axle lowboy trailers for sale are tested to ensure that our trailers are free of problems.

When transporting lowboy trailers for sale near me, many customers choose bulk carriers or ro-ro ships, which has low transportation costs and short transportation time.

TITAN tri axle lowboy trailers for sale have professional staff to make a package, all of them were trained constantly. Please notice that to prevent the lowboy truck trailer paint from being corroded by seawater to we spray a layer of wax on the surface of the lowboy truck for sale before shipping. And covering poncho to prevent the damp condition.

3 axle low loader trailer

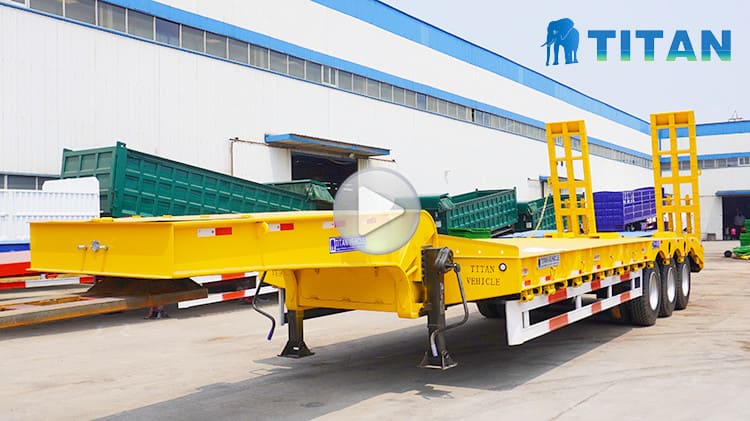

Video of 3 axle lowboy trailer

3 axle low loader trailer



customer feedback

If you want to know more more about customer feedback, please click https://www.chinatrucktrailers.com/about/best-truck-semi-trailer-cusotmer-reviews.html



Inquiry

Review

Benson from Zambia - 2022-07-07T17:07:03+0800
l was very satisfied with their service attitude. Special thanks to Jacky, his professional explanation, let me know more about tri axle 60 ton lowboy trailer.
