The blade lifting, rotating, and cooperating with the hydraulic steering of the rear wheel of the vehicle plate drives the rotating device to move horizontally. The blade can avoid obstacles to the greatest extent in the transportation process, reduce the work of road reconstruction, shorten the construction period, and reduce the investment. This type of blade lifting trailer has a small turning radius, less occupied road width, and convenient reversing. It is especially suitable for transporting wind turbine blades of various specifications.

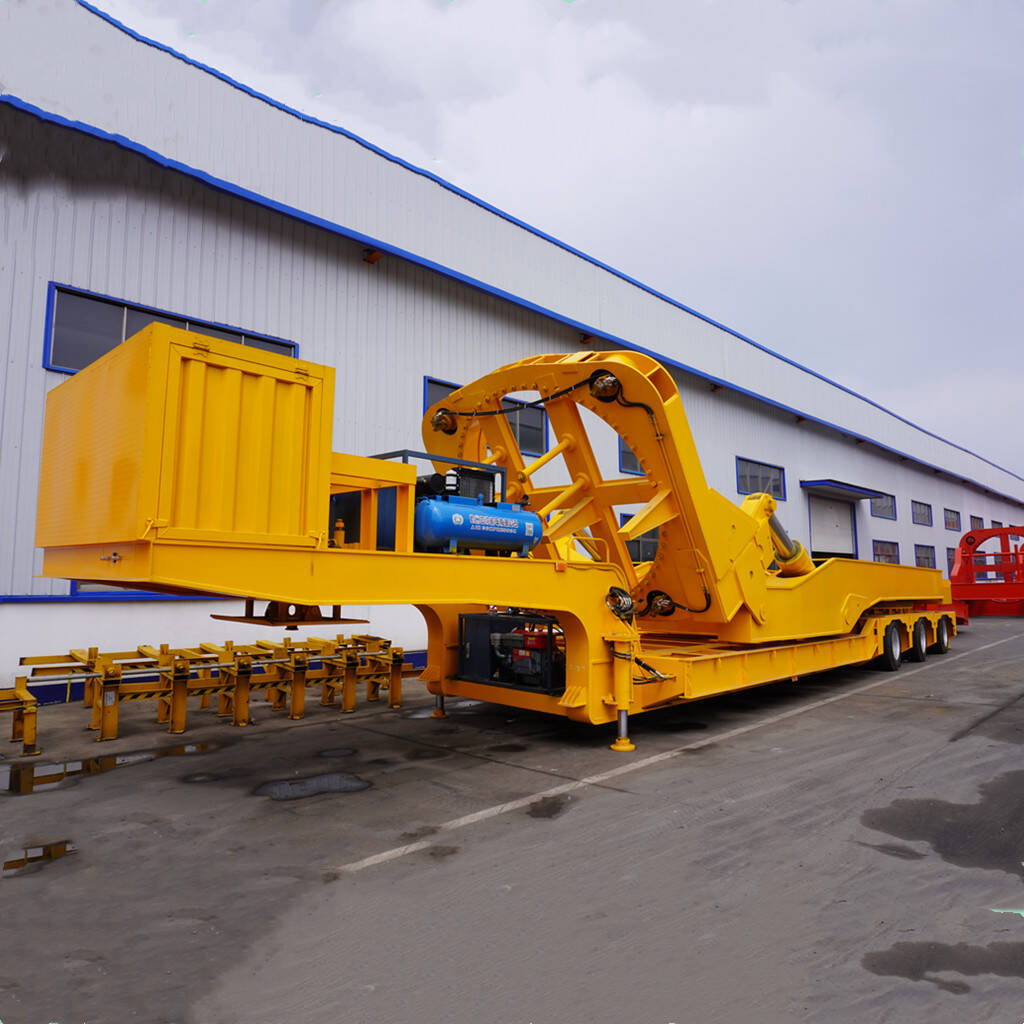

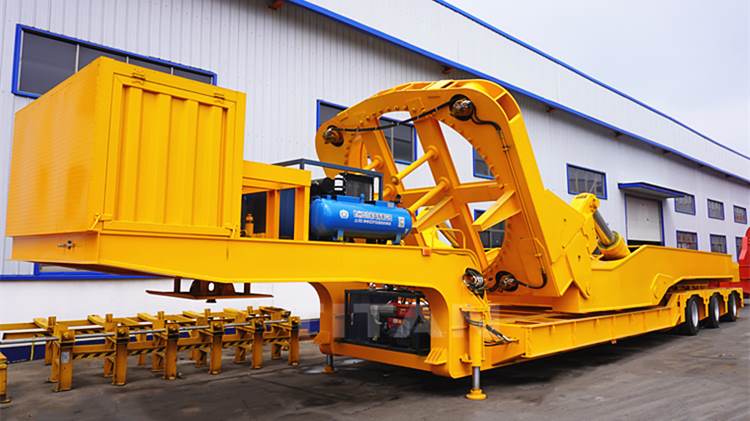

Brand: TITAN Adapter trailer for 80m wind turbine blade transportation
Dimension: 16250mm*3700mm*5000mm
Loading capacity: 23.5 Tons
Axle: 3 lines 6 axles
Max rotation angle: 360°
Hydraulic station: 40KW Four-cylinder Diesel Engine

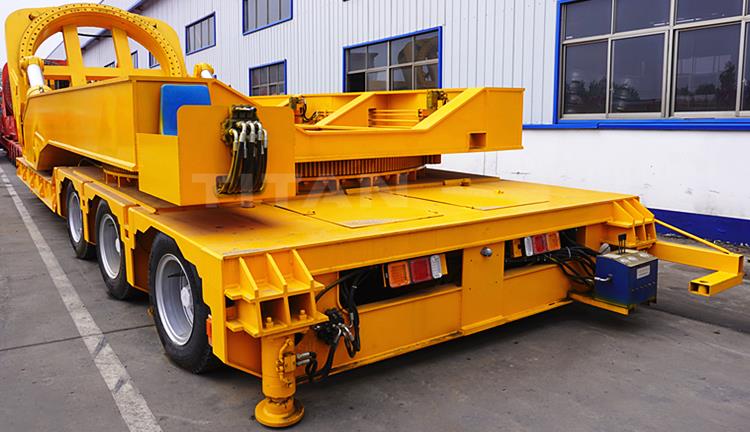

Tail: Slewing support cylinder with tooling at the tail (horizontally telescopic); with pusher
Transportable wind blade specification: 121-155 model

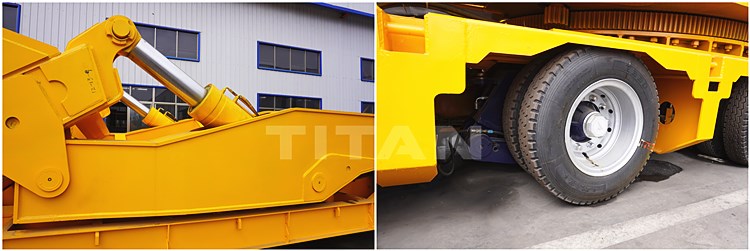

Diameter of lifting cylinder: 320mm; four-axis tire 8.25R16
Advantage:
1. These type of trailers are used to transport turbine blades on mountain roads and curved roads as well.
2. Because of the fact that extendable trailers are too long, when it comes to a mountain road, it is hard to steer hence the need for the special blade trailer.
3. The design is made in such a way that the blade adaptor can lift up and down making it easier for the trailer to steer easily.

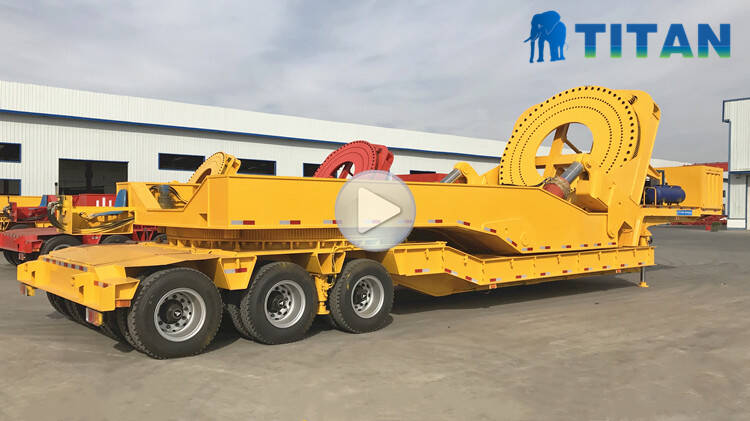

Through this video, you can learn more details about 3 line 6 axle windmill rotor blade lifter , windmill rotor blade trailer , etc.
If you want to know more types of wind blade trailers, please click here "Wind Blade Trailer" to watch the video!
Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
