Different Parameters, Different Price. Price Reference Only.

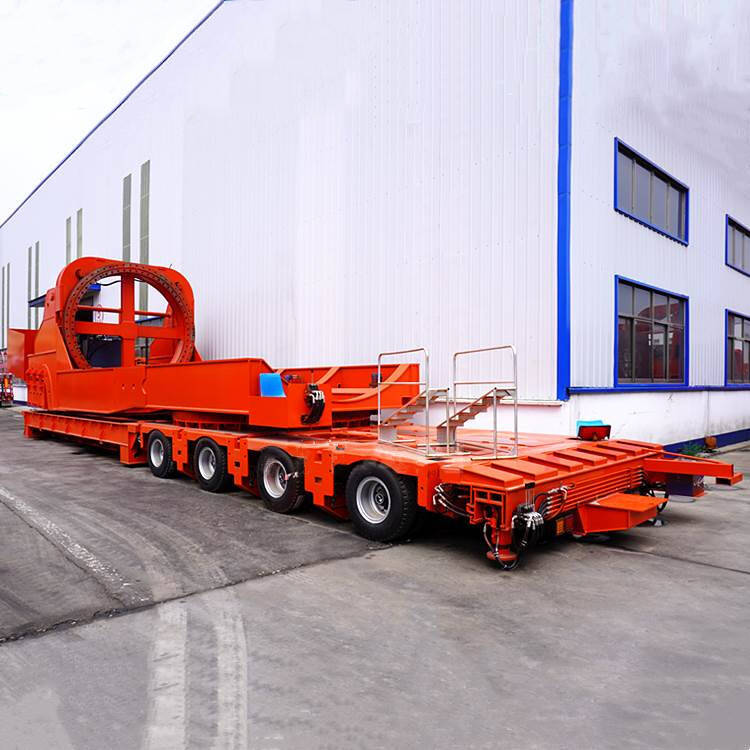

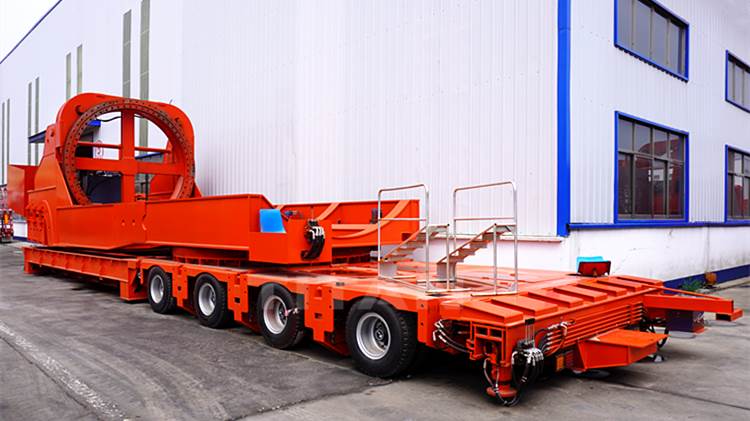

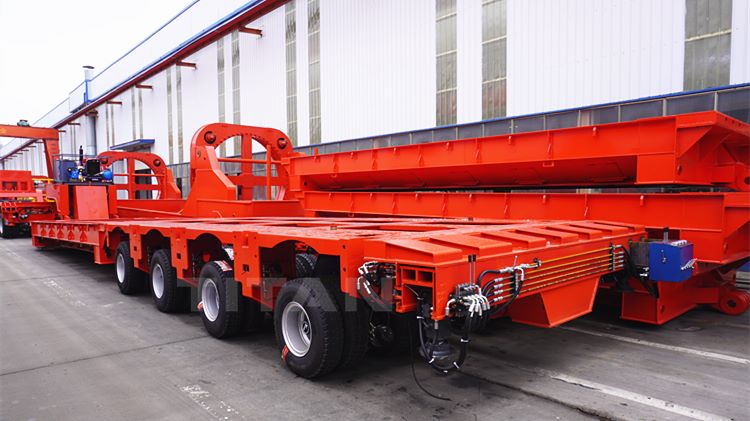

Windmill Rotor Blade Adapter Trailer, a kind of wind blade trailer, its main task is transporting wind turbine blades to the top of the mountains.
Windmill rotor blade adapter trailer is a subdivision of special vehicles. It is mainly used to transport wind turbine blades. It is a semi-trailer. Because it is super long, it generally adopts a drawing structure. The front section is drawn and the rear section is drawn. The longest reach 45 meters. Because the whole vehicle is longer, hydraulic steering is generally used. The bridge system has two-line four-bridge structure and three-way bridge structure.
Brand: TITAN Adapter trailer for 80m wind turbine blade transportation
Dimension: 19500mm*3400mm*4650mm
Applicable blade: 56.5m-76m

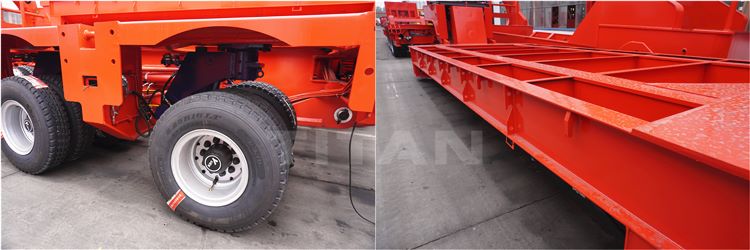

Axle: 4 lines 8 axles
Tires: 32 units
Max rotation angle: 360°
Hydraulic station: 40KW Four-cylinder Diesel Engine
Tail: Slewing support cylinder with tooling at the tail (horizontally telescopic); with pusher
Transportable wind blade specification: 121-155 model
Diameter of lifting cylinder: 320mm; four-axis tire 8.25R16
1. These type of trailers are used to transport turbine blades on mountain roads and curved roads as well.
2. Because of the fact that extendable trailers are too long, when it comes to a mountain road, it is hard to steer hence the need for the special blade trailer.
3. The design is made in such a way that the blade adaptor can lift up and down making it easier for the trailer to steer easily.
If you want to know more types of wind blade trailers, please click here "Wind Blade Trailer" to watch the video!
Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
