56M Windmill Transport Trailer
56M Windmill Transport Trailer

56M Windmill Transport Trailer

100000 USD

Different Parameters, Different Price. Price Reference Only.

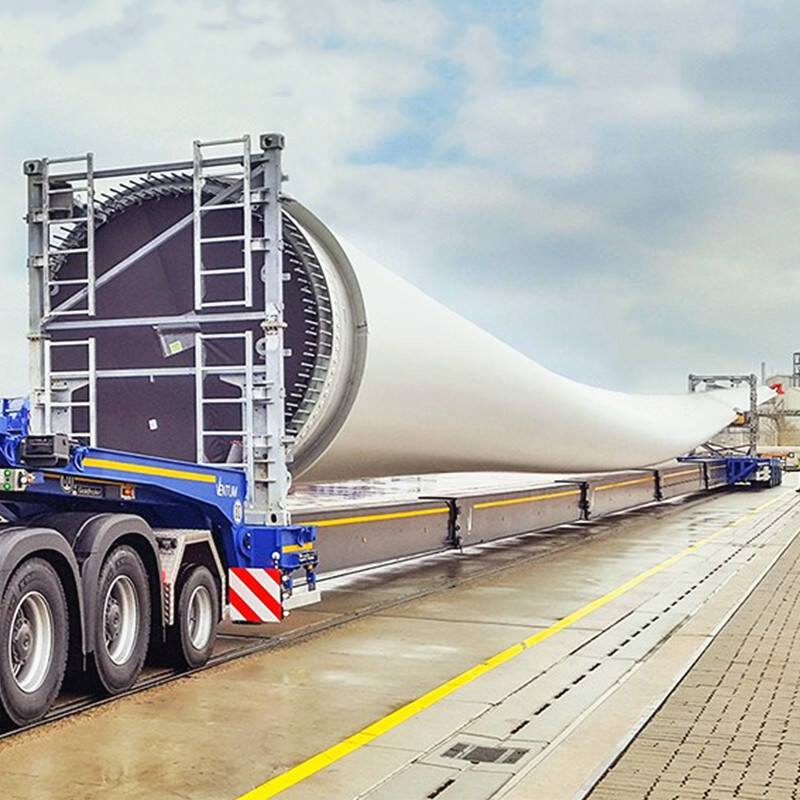

56M Windmill Transport Trailer adopts the extendable structure to extend the length, and the wind blade lies flat on top of the trailer.

SKU: 56M Windmill Transport Trailer
MPN: TITAN9403031
Brand: TITAN

56M Windmill Transport Trailer Product Description:

Extendable trailer and telescopic trailer for sale from China TITAN are widely used for long cargo transport, especially for windmill parts logistics, such as wind blade, wind tower section, and turbine. The stretchable telescopic beam could be 2 or 3 parts. Total length can reach up to 56/62 meters.

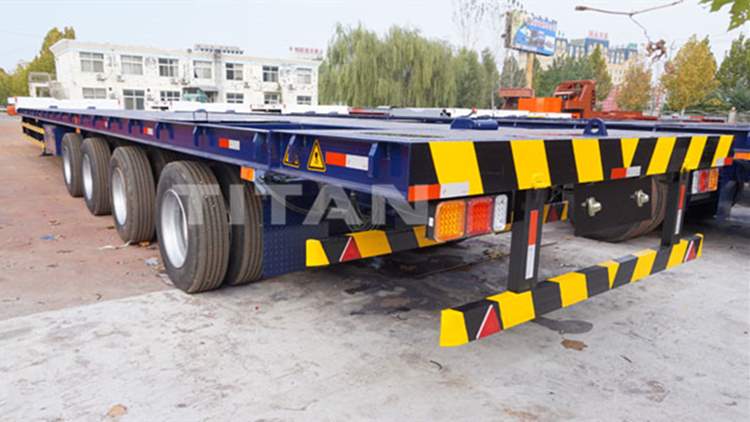

56M Windmill Transport Trailer for Sale in Hai Phong Vietnam

56M Windmill Transport Trailer for Sale in Hai Phong Vietnam

56M Windmill Transport Trailer for Sale in Hai Phong Vietnam



Specification´╝Ü

Brand: TITAN Telescopic Wind Turbine Blade Trailer

Dimension: 21,500mmX3000mmX1350mm

Total length: 56,000mm after extension

Loading capacity: 60 Ton

Platform thickness: 3 mm

Hydraulic power station: Diesel engine

Axle: 4 units steering axle

Suspension: Mechanical spring suspension.

Tyre: 16 units, Triangle brand

Braking system: WABCO emergency valve

King pin: 3.5 inch high tensile steel bolted type

Landing gear: JOST C200



Features:

1. Our extendable trailers feature a flat, extendible load floor and hydraulically forced steering. The very large steering angle makes the manoeuvrability of the TITAN extendable trailer exceptional. Moreover, this hydraulic steering of the ballasttrailer and teletrailer ensures the maintenance costs are very low and tyre wear is kept to a minimum.

2. Extendable trailer and telescopic trailer for sale from China TITAN are widely used for long cargo transport, especially for windmill parts logistics, such as wind blade, wind tower section, and turbine. The stretchable telescopic beam could be 2 or 3 parts. Total length can reach up to 60 meters.

3. The extendable trailer’s original design is using the mechanical axle, just like a low-bed trailer connect with a telescopic beam to make its length adjustable, so enable the trailer to adapt to different lengths of cargos.

4. The telescopic beam could be mounted in other semi-trailers, giving you an extendable flatbed trailer, extendable drop deck trailer as well as extendable lowboy trailer.

5. Extendable telescopic beam/boom protects wind turbine rotor blade from any damages or distortions during logistic, it just performed like bracket holder of the rotor blade. Please go blade trailer if you need to know more info.

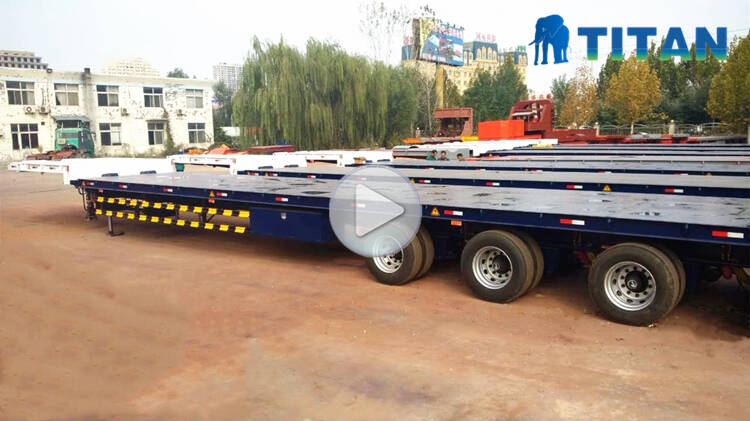

Through the video, you can know different types of 56m windmill transport trailer , 4 axle windmill blade transport trailer , extendable windmill blade trailer, etc.

Please click "TITAN Wind Blade Trailer" to get more videos!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
