Tipper Semi Trailer for Sale - Different Types of 60 Ton Tipper Semi Trailer

TITAN VEHICLE | 2021-06-11



Different Types of Tipper Semi Trailer

TITAN 60 ton Tipper semi trailer can be used in many other fields such as construction, agriculture, etc. We have different shapes and types of Tipper semi trailer, which are divided into Tipper semi trailer and rear tipping trailer. skeleton end Tipper trailer, and flatbed type tipping trailer, Drawbar tipper trailer.

Hydraulic 3 axle Tipper semi trailer for sale can be customized from 15 tons to 80 tons semi tipper trailers for sale, 80 tons to 120 tons Tipper semi trailer,  120 tons-180 tons Tipper semi trailer of different tonnage according to the different cargoes. The common volumes are 30 cubic meters semi tipper trailer, 32 cubic meters semi tipper for sale, 35 cubic meters, 45 cubic meters, 50 cubic meters, 60 cubic meters, 80 cubic meters and so on.

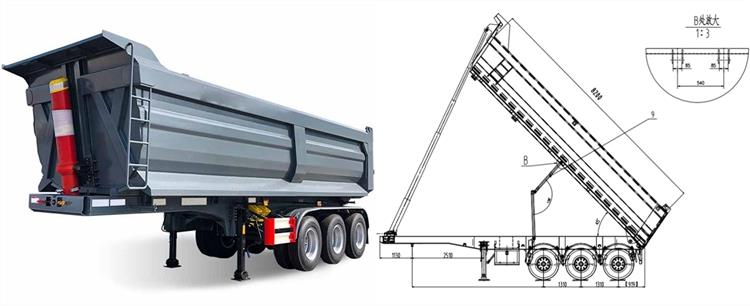

Tipper Semi Trailer for Sale - Different Types of 60 Ton Tipper Semi TrailerTipper Semi Trailer for Sale - Different Types of 60 Ton Tipper Semi Trailer

Components of the Hydraulic Lifting System of Hydraulic Tipper Semi Trailer

The rear Tipper semi trailer train is mainly composed of a tractor and a semi-trailer. The tractor is connected by a saddle and a semi-trailer to form a semi-trailer train. The rear Tipper trailer hydraulic lift system is mainly composed of power take-off (transmission), hydraulic pump, lift valve, pneumatic control valve, limit valve, hydraulic cylinder, hydraulic oil tank, high (low) pressure oil pipe and so on.

The high-pressure oil output by the gear pump enters the poppet valve through the high-pressure oil pipe.

The lift valve sends high-pressure oil to the oil cylinder or discharges it into the hydraulic oil tank under the control of the air control valve, thereby achieving the functions of lifting, stopping and lowering the end Tipper trailer hydraulic oil cylinder.

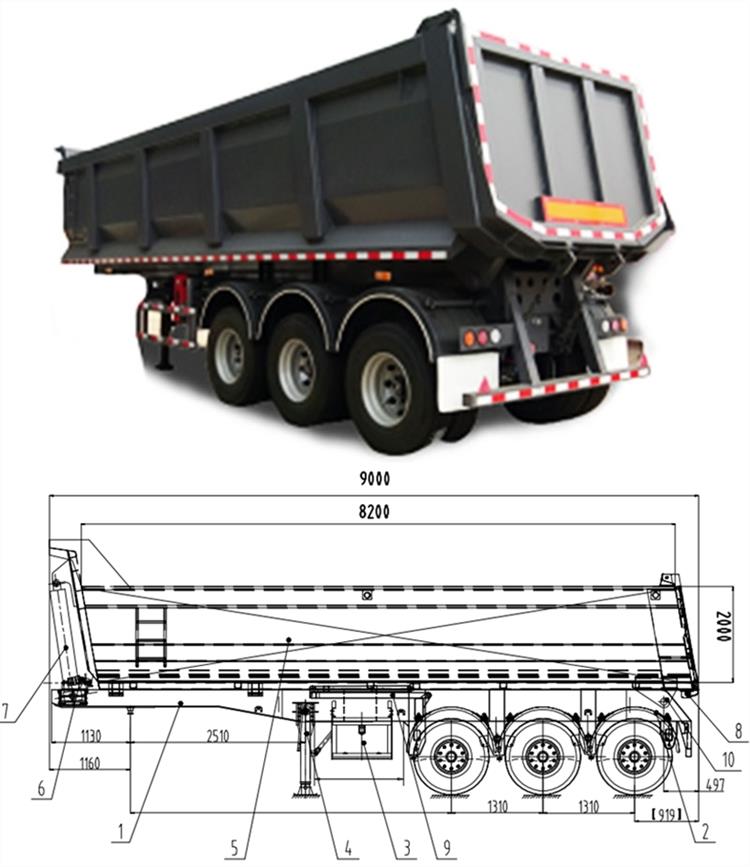

40 Ton Tipper Semi Trailer for Sale Price 40 Ton Tipper Semi Trailer for Sale Price

Precautions for Operating the Hydraulic Lifting System of Heavy Duty Tipper Trailers

1. The hydraulic tank of the TITAN 3 axle Tipper semi trailer for sale auction is a special lifting cylinder. Don’t use the cylinder as a stable support for the Tipper trailer body.

2. Do not leave the cylinder exposed to the air for more than 2 hours (more than 30 minutes in humid air) in a lifted state, otherwise, it will cause oxidation and rust of the cylinder;

3. It is forbidden to disassemble and adjust the relief valve on the lift valve, otherwise the hydraulic system will lose its safety protection function and cause an accident.

4. When the chassis tipper for sale loads cargo, we should ensure that the front and back and left and right loading are uniform. If you have too much cargo in front, it can overload the hydraulic system. Too much cargo is loaded behind the 20/40 feet Container Tipper Semi Trailer, which will cause the semi end Tipper trailers for sale to tip over when unloading, and the left and right partial load will easily cause the cylinder to tip over.

5. When unloading, please make sure that the ground around the lightweight tip trailer is solid and flat, keep the triple axle Tipper trailer stable, and ensure that the main Tipper truck and the Scrap Tipper Trailer are in a straight line;

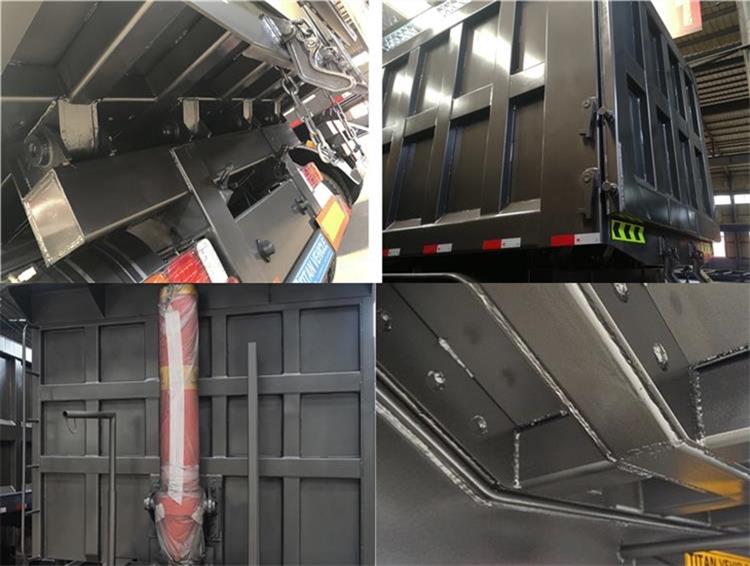

Details of Tri Axle Tipper Semi Trailer for SaleDetails of Tri Axle Tipper Semi Trailer for Sale

How do you Tipper a Tipper semi trailer load?

1. Before unloading, make sure that there are no people on both sides and rear of the 60 ton Tipper semi truck trailer for sale, and check whether the Tipper truck trailer for sale lifting limit device is intact.

2. After the semi Tipper trailers for sale lifting operation is completed, before driving, be sure to turn off the semi Tipper trailers power take-off switch to separate the power take-off from the gearbox and stop the oil pump; then put the manual operation valve at the mid-stop position to avoid automatic lifting during driving Danger.

3. The tipper trailer for sale can only be driven after the carriage is reset to the upper wing surface of the sub-frame. Because the semi Tipper trailers for sale carriage is in the lifted state, it is very likely to cause malfunctions and accidents.

4. The goods in the semi Tipper trailers for sale carriage are evenly distributed, and do not exercise or Tipper with serious partial load.

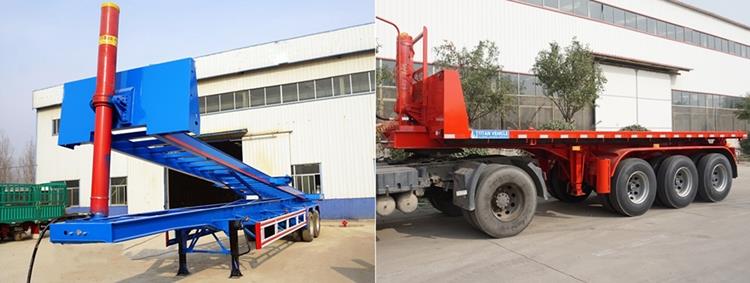

Different Types of Tipper Semi Trailer - Container Tipper Chassis/Flatbed Tipper TrailerDifferent Types of Tipper Semi Trailer - Container Tipper Chassis/Flatbed Tipper Trailer

Operating Instructions of the Hydraulic Lifting System of 60 Ton Tipper Semi Trailer

Titan lifting 20/28ft adjustable custom container chassis trailer hydraulic system lifting operation sequence:

Open the tarpaulin or box lid on the trailer——Open the rear door lock——Press the clutch with the transmission in neutral and wait 5 seconds——Hanging low gear (below 4 gears)——Place the handle of the air control valve in the raised position——The Tipper trailer starts to lift after releasing the clutch, The engine throttle can be properly depressed but it must be controlled within 1500 rpm-when the cylinder reaches the maximum stroke or the limit valve is activated, the air control valve handle is in the stop position.

Tipper semi trailer descending operation sequence: Step on the clutch and wait 5 seconds——Adjust PTO——Adjust transmission gear——Release the clutch——Turn the handle of the air control valve slowly from the stop position to the down position——When you fully lower the car body, wait for 30 seconds and put the handle of the air control valve in the stop position.
