100 Ton 4 Axle Low Bed Trailer
100 Ton 4 Axle Low Bed Trailer

100 Ton 4 Axle Low Bed Trailer

19300 USD

Different Parameters, Different Price. Price Reference Only.



TITAN Vehicle offers 100 ton 4 axle low bed truck trailer designed to carry 30 tons, 40 tons, 60 tons, 80 tons, 100 tons, 120 tons, 150tons. It's main cargo platform is low, which ensures the stability of transportation.

SKU: 100 Ton 4 Axle Low Bed Trailer
MPN: TITAN9401TDP021
Brand: TITAN

Product Description:

4 axle 100 ton low bed truck trailer use high strength steel material to ensure the capacity, the load can be up to 100 to 120 ton payload.

We adopt famous brand parts, like WABCO braking valve, JOST legs, FUWA, BPW axles. This’ll ensure the long service life of the trailers.

China 100 Ton 4 Axle Low Bed Trailer for Sale - TITAN Vehicle

4 Axle 100T Low Bed Truck Trailer | 100 Ton Lowbed Semi Trailer for Sale

China 100 Ton 4 Axle Low Bed Trailer for Sale - TITAN Vehicle

4 Axle 100T Low Bed Truck Trailer | 100 Ton Lowbed Semi Trailer for Sale

China 100 Ton 4 Axle Low Bed Trailer for Sale - TITAN Vehicle

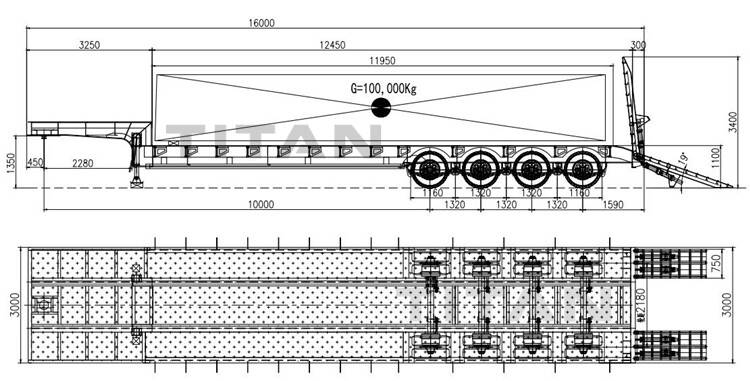

Specification´╝Ü

Overall dimension: 16000mm * 3000mm *3400mm

Loading capacity(T): 100T

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20

Tire: 11.00R20

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.

Bottom Platform: 5mm thick checkered plate

Ramp: hydraulic type

Gooseneck: Optional

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

China 100 Ton 4 Axle Low Bed Trailer for Sale - TITAN Vehicle

Advantage:

1. Main beam adopts HG high strength steel, with high loading capacity.

2. Side beam adopt “H” steel, the durable design avoid the side beam to have the deformation.

3. The loading ramps is made by high strength steel, with high loading capacity, will not happen to the deformation when carry heavy equipment.

4. polyurethane paint, with long service lift, and avoid the vehicle get rust.

5. World famous brand spare part, ensure high quality and save costs.

China 100 Ton 4 Axle Low Bed Trailer for Sale - TITAN Vehicle

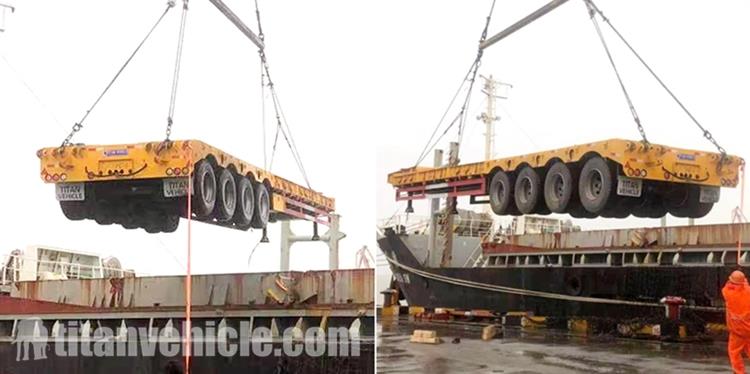

Delivery of 4 Axle 100T Low Bed Truck Trailer

China 100 Ton 4 Axle Low Bed Trailer for Sale - TITAN Vehicle

Feedback of 4 Axle 100 Ton Lowbed Semi Trailer

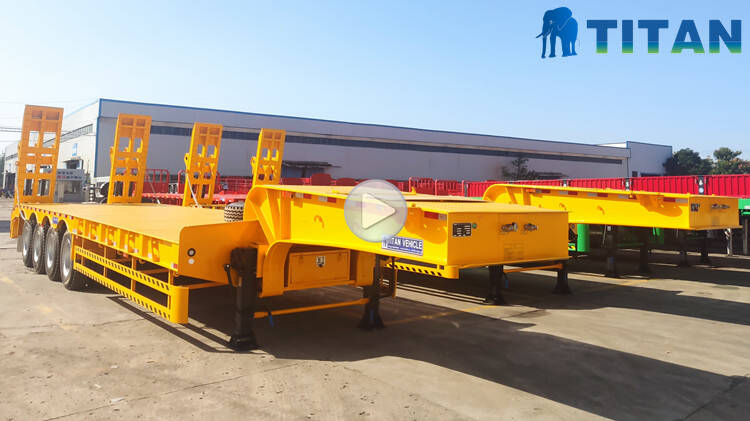

4 Axle 100 Ton Lowbed Semi Trailer details display video



Through this video below, you can learn about different types of lowbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.

3 Axle 80 Ton Low Bed Truck



Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!

Inquiry

Review

ABOGHE from Gabon - 2021-12-23T16:12:29+0800
Considering the road conditions, I chose the most durable 100 ton 4 axle low bed trailer, especially for the African market. This kind of anti-deformation, anti-vibration and anti-collision makes my transportation safer.
