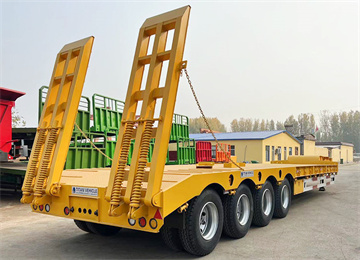

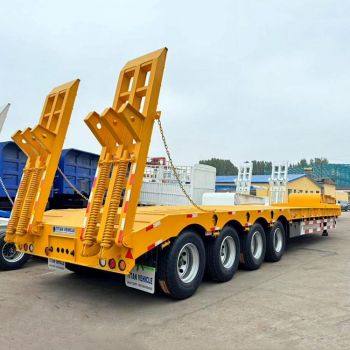

TITAN 4 axle low loader truck is designed to transport goods that have non-standard dimensions or heavy weight. 4 axle low loader trucks are used to deliver construction, agricultural and other equipment to the place of work. The frame of the 4 axle semi low loader trailer is low. This makes it possible to transport oversized cargo without fear of damaging power lines and other low structures when moving.
Dimension(mm): 13000*3000*1250 mm
Loading capacity: 80 ton
Axle: TITAN 16 ton axle, 4 axles
Tire: 12R22.5, 16 units
The distance between each two inclined supports is only 50 cm, which makes the frame more durable and have strong capacities.

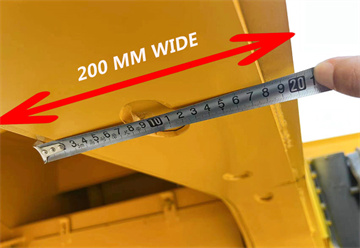

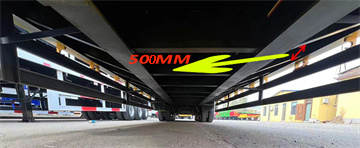

Titan uses more thick steel plate to produce the trailer. The following is the picture of the main beam of our 60 tons lowbed trailer.The middle plate is 500 mm height,12 mm thick; the upper plate is 20 mm thick, 200 mm wide;the bottom plate is 20 mm thick,200 mm wide.
TITAN uses the rain cloth to wrap the 4 axle semi low loader trailer, which can mke sure that the 4 axle semi low loader trailer could avoid the damage of sea water or bad weather.
Before the 4 axle semi low loader trailer wraped, it will be sprayed the wax to protect the paint on the 4 axle semi low loader trailer
Video of 4 axle low loader truck
