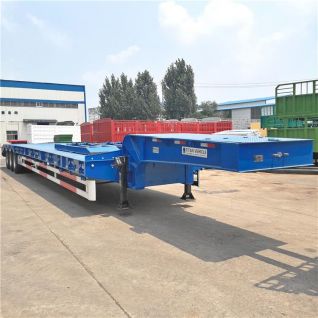

3 Axle 70T Semi Low Loader
3 Axle 70T Semi Low Loader

3 Axle 70T Semi Low Loader

15000 USD

Different Parameters, Different Price. Price Reference Only.



3 Axle Semi Low Loader Trailer can load more widen heavy machines, like the bulldozer, excavator, etc. The lower Semi Low Loader Trailer are easy to load or unload the heavy machines.

SKU: 3 Axle 70T Semi Low Loader
MPN: TITAN9401TDP018
Brand: TITAN

Product Description´╝Ü

TITAN 3 Axle Semi Low Loader Trailer main beam adopts submerged arc welding technology, which ensures smooth, sturdy welding seams and avoids welding-opening problems. And also improve the loading capacity. Main beam height is 550-580mm. The front/down plate width is 220mm, and thickness is 22mm.

3 Axle Semi Low Loader Trailer can load more widen heavy machines, like the bulldozer, excavator, etc. The height of the tires is lower than the working platform, which makes the height is lower than the normal 3 Axle Semi Low Loader Trailer. The lower Semi Low Loader Trailer are easy to load or unload the heavy machines.

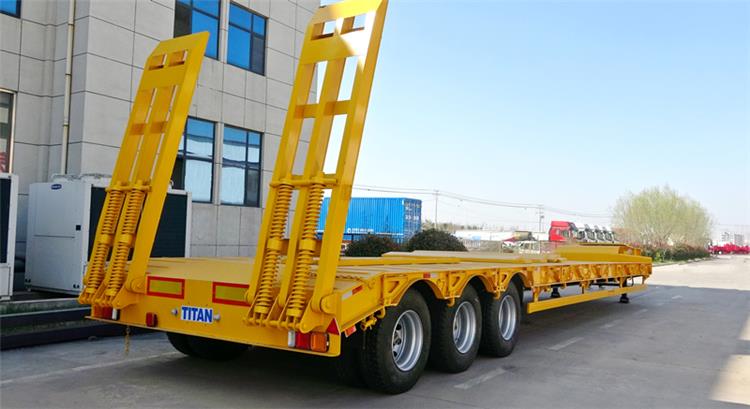

3 Axle Semi Low Loader Trailer for Sale in Mauritania - TITAN Vehicle

3 Axle Semi Low Loader Trailer for Sale in Mauritania

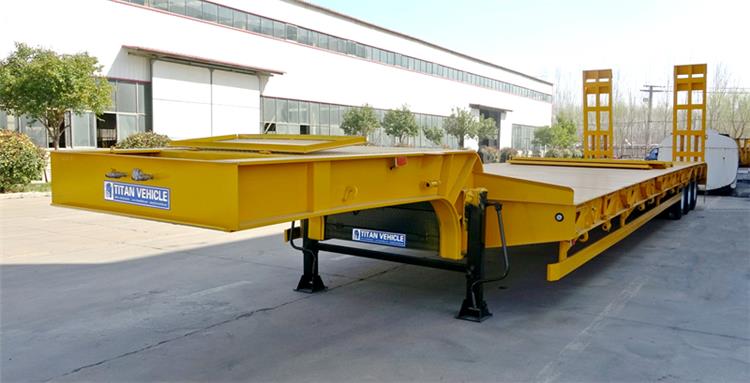

3 Axle Semi Low Loader Trailer for Sale in Mauritania - TITAN Vehicle

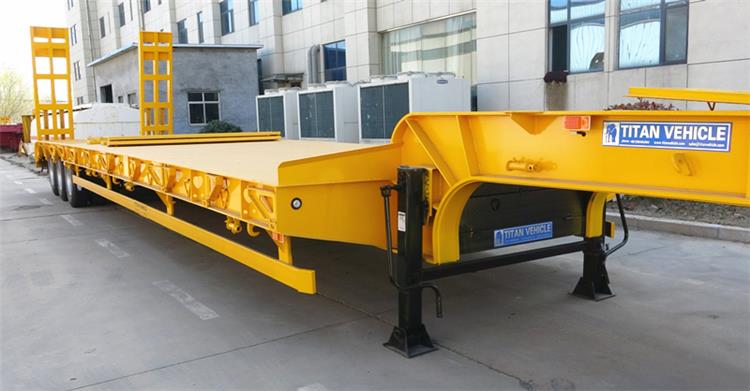

3 Axle Semi Low Loader Trailer for Sale in Mauritania - TITAN Vehicle

3 Axle Semi Low Loader Trailer for Sale in Mauritania - TITAN Vehicle



Specification´╝Ü

Overall dimension: 13000mm * 3000mm *3400mm

Loading capacity(T): 40-120T

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20

Tire: 11.00R20

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.

Bottom Platform: 5mm thick checkered plate

Ramp: Spring ramp, hydraulic ramp

Gooseneck: Optional

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)



Through this videos, you can learn about different types of lowbed semi-trailers,like 2axle,3axle,4axle lowbed semi trailer,hydraulic ladder lowbed semi trailer,etc.As well as the process, testing, packaging and customer feedback, etc.
