58M Extendable Wind Turbine Transport Trailer
58M Extendable Wind Turbine Transport Trailer

58M Extendable Wind Turbine Transport Trailer

61530 USD

Different Parameters, Different Price. Price Reference Only.



TITAN produces Extendable Blades wind turbine trailer for Carrying 80 meters Wind Blade.

SKU: 58M Extendable Wind Turbine Transport Trailer
MPN: TITAN9403060
Brand: TITAN

58M Extendable Wind Turbine Transport Trailer Description:

58M 4 Axle Extendable Blades Wind Turbine Trailer for Carrying 80M Wind Blade.

TITAN Extendable Modular Trailer adapts perfectly to haul 45 meters to 80 meters long windmill turbine blade transportation and long bulky goods.TITAN Extendable Modular Trailer are noted for their highly robust frames and outstanding stability of the extension beam. the high standard of the workmanship and welding process ensures easy adjustment of the extension beams.

TITAN Extendable Modular Trailer can be adjusted to fit any size or band of Turbine Blade, TITAN can provide you the customize wind blade trailer to meet your transport requirements.

Gooseneck mechanical lift (hydraulic lift pull type four-bridge hydraulic steering large blade transporter, 58 meters fulcrum, single beam pull, transport blades within 80 meters on land)

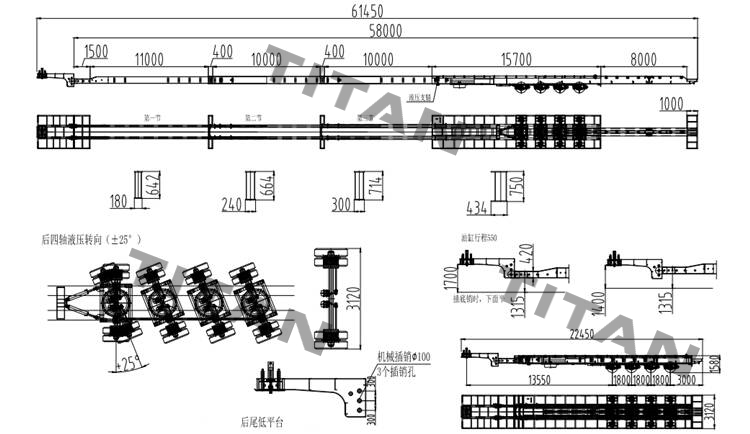

58M Extendable Wind Turbine Blade Transport Trailer

58M Extendable Wind Turbine Blade Transport Trailer For Sale

extendable trailers for sale

Extendable Trailers for sale

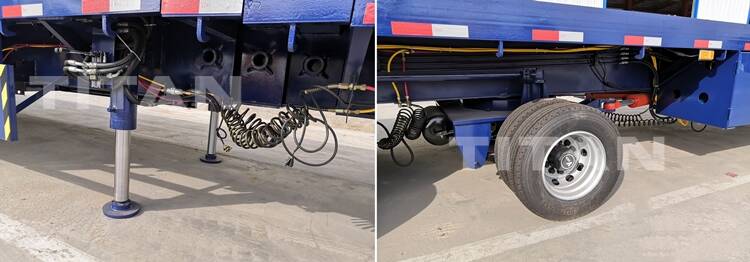

50m extendable trailer

Windmill Turbine Blade Trailer

58M Extendable Wind Turbine Blade Transport Trailer



Specification´╝Ü

Brand: TITAN 58M 4 Axle Extendable Blades Wind Turbine Trailer

Dimension: 22,450mmX3120mmX 1580mm

Total length: 61,000mm after extension

Loading capacity: 90 Ton

Platform thickness: 3 mm

Hydraulic power station: Diesel engine

Axle: 4 axle

Suspension: Hydraulic suspension.

Tire: 16 units, Triangle brand

Braking system: WABCO emergency valve

King pin: 3.5 inch high tensile steel bolted type

Landing gear: JOST C200



Advantage:

1.Trailer's length from 22 meters extend to 58 meters

2.Transport the 45 meters to 80 meters Windmill Turbine Blade.

3.Loading capacity is up to 90 ton

4.Steerable axles, all wheels steering.

5.Highly robust frames and outstanding stability of the extension beam.

6.Mechanical spring suspension, air suspension, or hydraulic suspension is an option

7.Manual valve operation and wireless remote control.



58M Extendable Blades Wind Turbine Trailer details display video

TITAN 58M 4 Axle Extendable Blades Wind Turbine Trailer
