Different Parameters, Different Price. Price Reference Only.
The low deck gooseneck trailer can use the lifting cylinder installed on the vehicle to support the front part of the semi trailer body on the ground. After the tractor is separated from the saddle of the semi trailer, the tractor is driven away from the semi trailer.

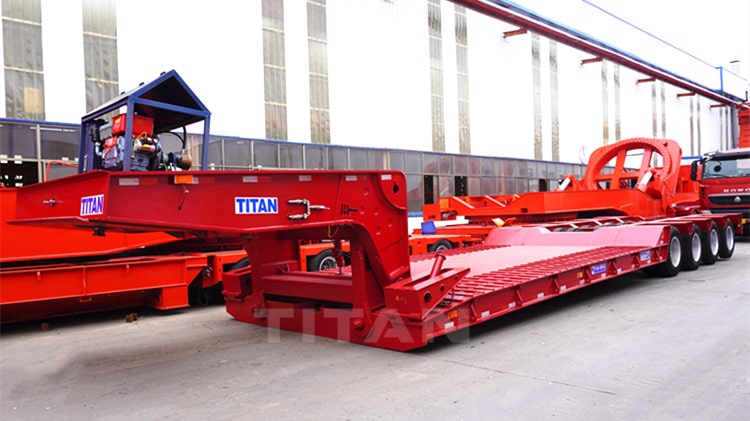

Detachable gooseneck allows the front of the trailer to detach. After the front of the gooseneck has been detached, a large piece of equipment like a tractor or excavator can be driven directly onto the trailer. After the equipment is loaded, the gooseneck is reattached and the equipment can be secured in place. This simplifies the process of loading and unloading.

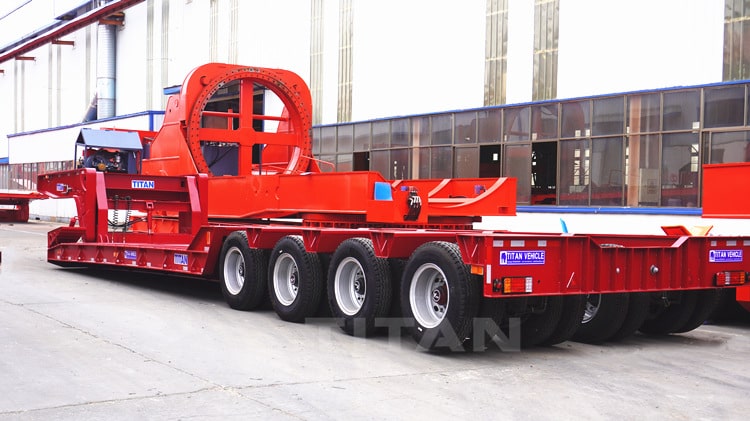

4 Line 8 Axle Low Deck Gooseneck Trailer
Low Bed Gooseneck Trailer

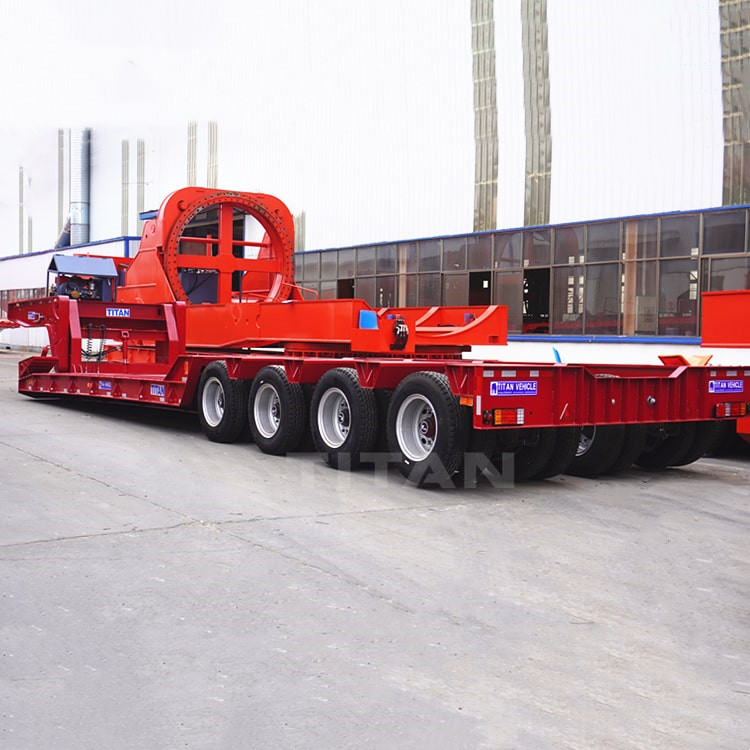

120t Low Deck Gooseneck Trailer for Sale
Dimension: 17000mm x 3000mm x 2500mm
Loading capacity(T): 50-150T
Axle: 4 line 8 axle
Tire: 32 units, 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension or air suspension
Spring leaf: 120(W)mmx16(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Tare weight: About 9.5-19T
Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.

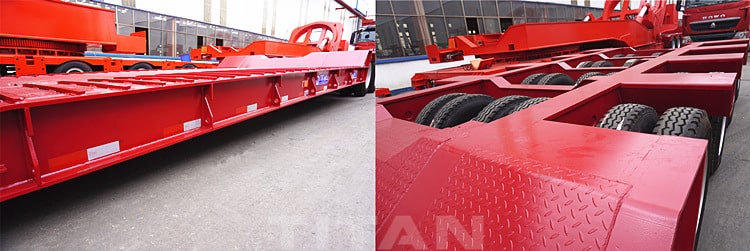

Bottom Platform: 5mm thick, checkered plate
Hydraulic cylinder: 12KW diesel engine with hydraulic station
Ramp: spring or hydraulic type
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Tool box: 1 set
Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust

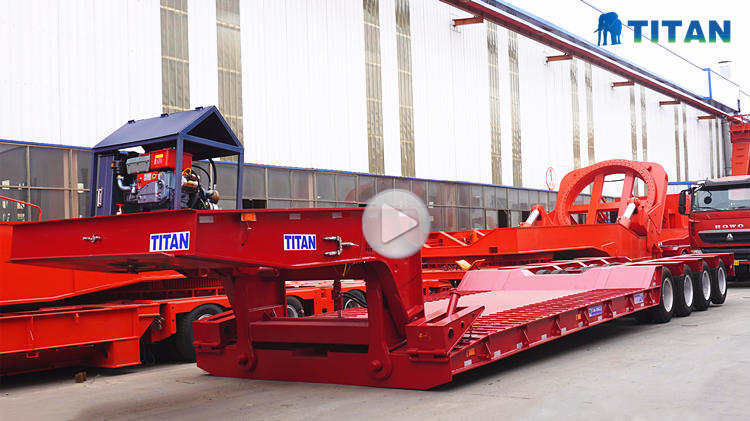

Through the video, you can know different types of hydraulic detachable gooseneck , detacahble gooseneck trailer , 4 line 8 axle hydraulic detachable gooseneck trailer for sale.
Please click "TITAN Removable Gooseneck Trailer" to get detailed video!
Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
