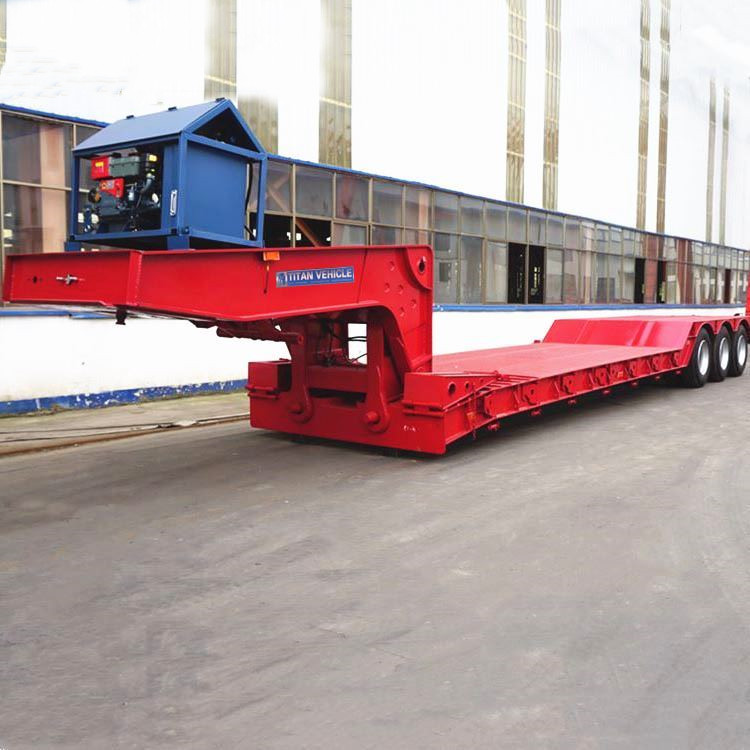

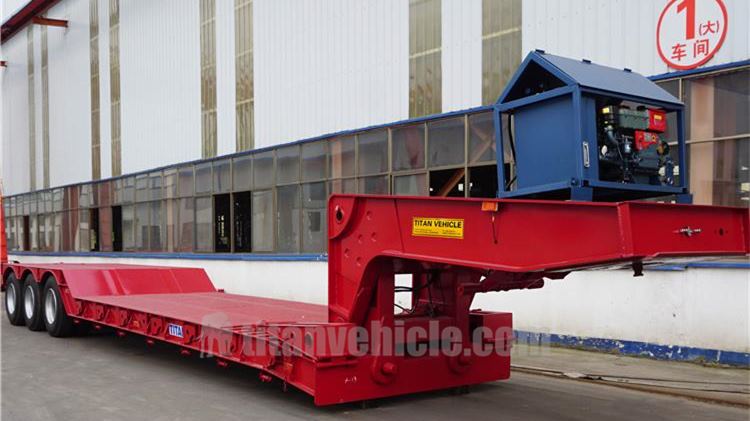

80ton Lowboy Trailer is used for trailers that carry oversize and overweight cargo. The basic form of a heavy trailer is a monocoque trailer.

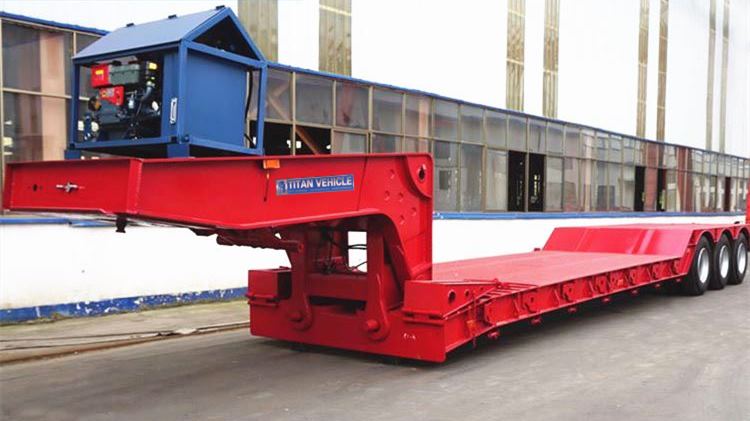

The series of gooseneck lowboy trailer have flat, concave beam and tire leakage structures. The frame is stepped and the longitudinal beam section is I-shaped, which has the characteristics of rigid height and strong height. The low plane of the truck rack and column ensures the stability of transportation and is suitable for carrying all kinds of construction machinery, large equipment and steel.
The lowboy semi trailer is used for pulling mechanical equipment, large-scale equipment such as excavators, bulldozers, etc. The second and third bridges can be equipped with 30 tons, 50 tons, 60 tons, 80 tons, 100 tons, 120 tons, and 300 tons. Pulling and optional hydraulic ladder trucks have a low level of shelf and column to ensure the stability of transportation and are suitable for carrying all kinds of construction machinery, large equipment and steel.
Dimension: 15800mm x 3000mm x 2500mm
Loading capacity(T): 50-150T
Axle: 13T/16T, FUWA / BPW / TITAN Brand

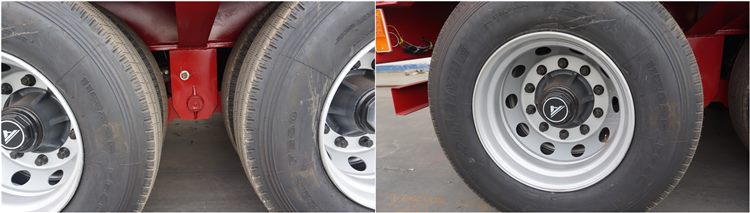

Rim: 8.0-20 or 900*22.5
Suspension: Mechanical suspension or air suspension
Spring leaf: 120(W)mmx16(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Tare weight: About 9.5-19T
Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.
Bottom Platform: 5mm thick, checkered plate
Hydraulic cylinder: 12KW diesel engine with hydraulic station
Ramp: spring or hydraulic type
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Tool box: 1 set
Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust
Shipping terms: Transported by the bulk carrier in an RORO or 40HQ container
Through the video, you can know different types of 80ton lowboy trailer manufacturers , tri axle lowboy trailer manufacturers for sale , gooseneck lowboy trailers for sale, etc.

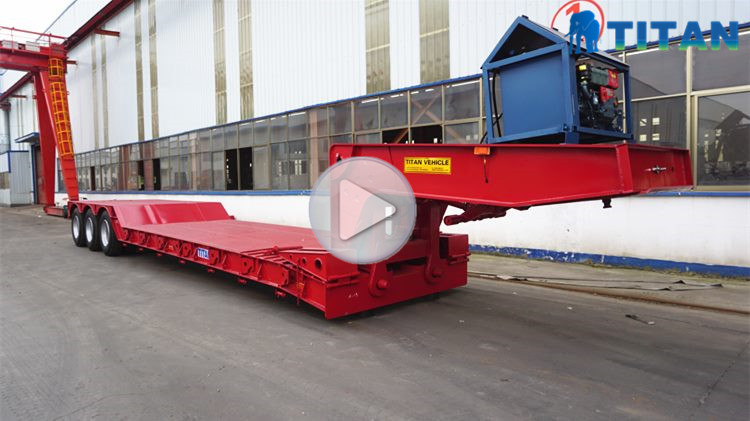

Please click "TITAN Removable Gooseneck Trailer" to get detailed video!
