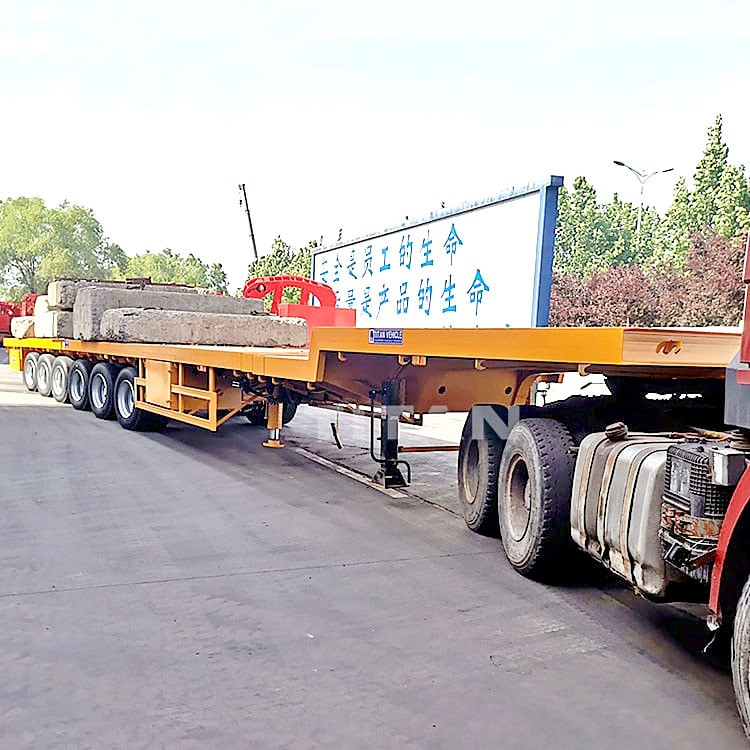

6 Axle 62 Meters Extendable Trailer
6 Axle 62 Meters Extendable Trailer

6 Axle 62 Meters Extendable Trailer

61530 USD

Different Parameters, Different Price. Price Reference Only.



TITAN 6 Axle 62 Meters Extendable Trailer cen be widely used to transport heavy loads and wind turbine blades.

SKU: 6 Axle 62 Meters Extendable Trailer
MPN: TITAN9403052
Brand: TITAN

6 Axle 62 Meters Extendable Trailer Product Description:

Our extendable trailers feature a flat, extendible load floor and hydraulically forced steering. The very large steering angle makes the manoeuvrability of the TITAN extendable trailer exceptional. Moreover, this hydraulic steering of the ballasttrailer and teletrailer ensures the maintenance costs are very low and tyre wear is kept to a minimum.

Extendable trailer and telescopic trailer for sale from China TITAN are widely used for long cargo transport, especially for windmill parts logistics, such as wind blade, wind tower section, and turbine. The stretchable telescopic beam could be 2 or 3 parts. Total length can reach up to 62 meters.

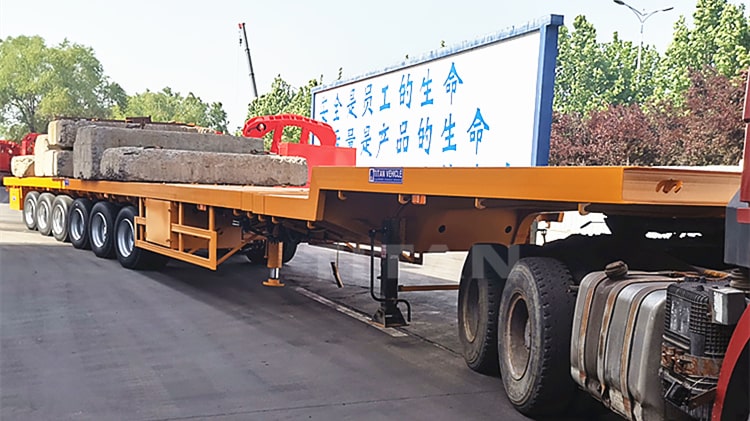

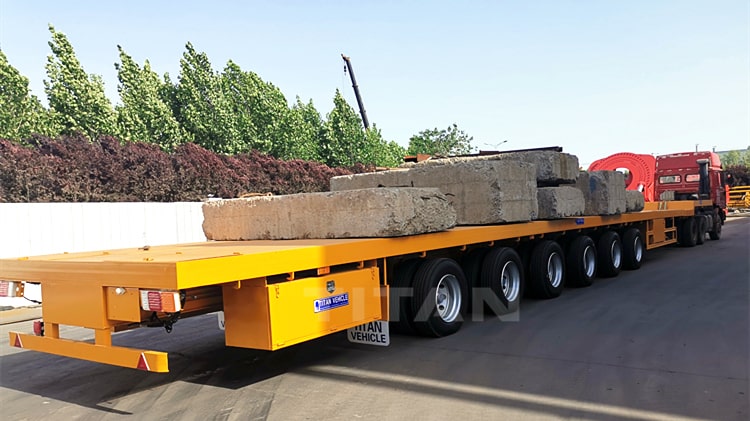

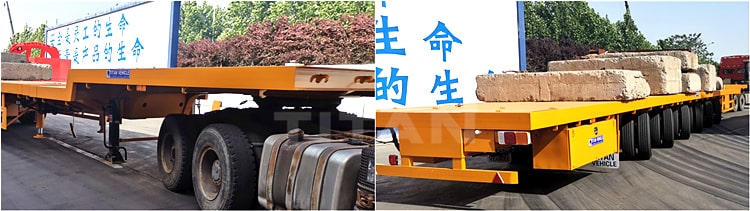

6 Axle 62 Meters Extendable Trailer for Sale Price in Vietnam

6 Axle 62 Meters Extendable Trailer for Sale Price in Vietnam

6 Axle 62 Meters Extendable Trailer for Sale Price in Vietnam



Specification:

Brand: TITAN 62m Extendable Trailer for Windmill Blade Transport

Closed length: 24150mmX3000mmX1650mm

Total length: 62,000mm after extension

Transport: 80m windmill blade

Loading capacity: 90 Ton

Platform thickness: 3 mm

Hydraulic power station: Diesel engine

Axle: 6 axle

Suspension: Hydraulic suspension

Tire: 24 units

Braking system: WABCO emergency valve

Kingpin: 3.5 inch

Landing gear: JOST C200

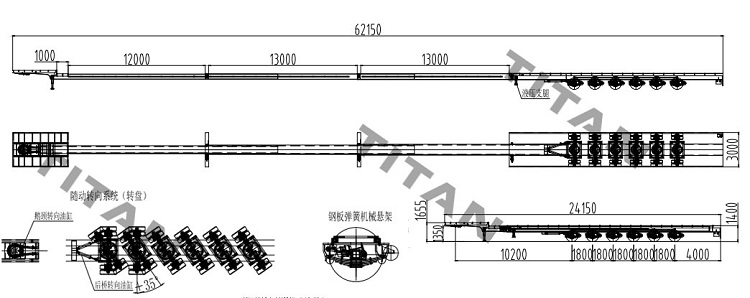

6 axle extendable trailer drawings

Advantages:

1. The general extendable transporter of wind turbine blades is a bit similar to the lowbed transporter, but its girder adopts a buckle box type design, and the girder is pulled to adjust the length of the vehicle to adapt to the transportation of wind blades of different lengths.

2. The extendable flatbed semi trailer has flat, concave beam, tire leaking and pull-out structures. The frame is stepped and the longitudinal beam section is I-shaped, which has the characteristics of high rigidity and high strength.

3. The vehicle body is made of high-quality steel, and the main plane of the frame and cargo platform is low, which ensures the stability of transportation and is suitable for carrying various construction machinery, large equipment and steel. It adopts three-axis balance type, two-axis balance type or rigid suspension, with a mass balance block installed between the front and rear leaf springs, which can make the front and rear leaf springs change in equal amounts and balance the forces on the front and rear axles.

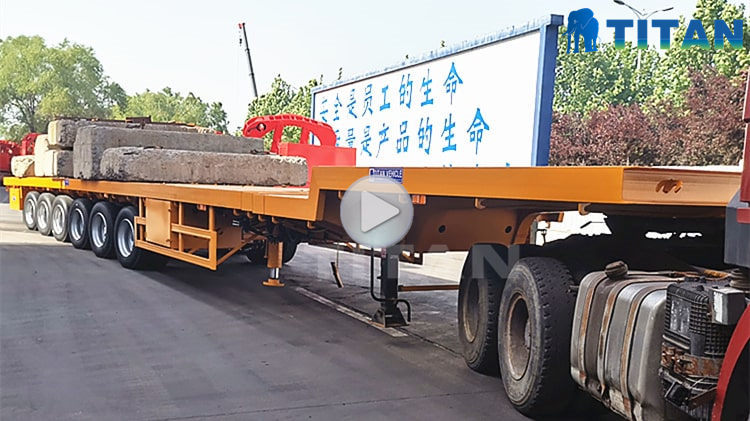

Through this video, you can learn more details about 62m windmill blade transport , 6 axle windmill blade transport trailer , windmill blade trailer for sale, etc.

If you want to know more types of wind blade trailers, please click here "Wind Blade Trailer" to watch the video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
