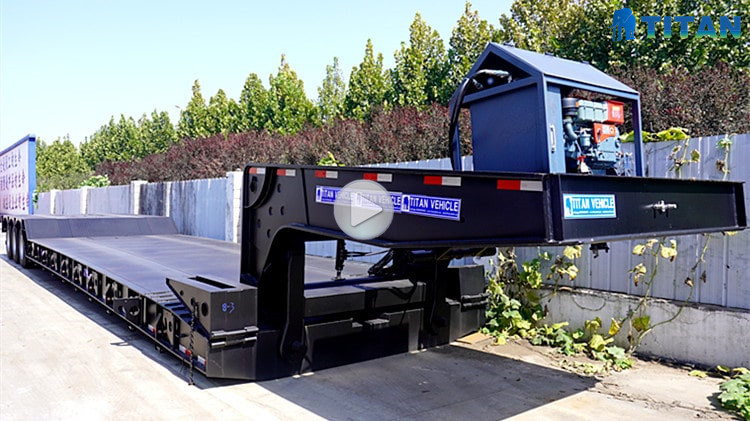

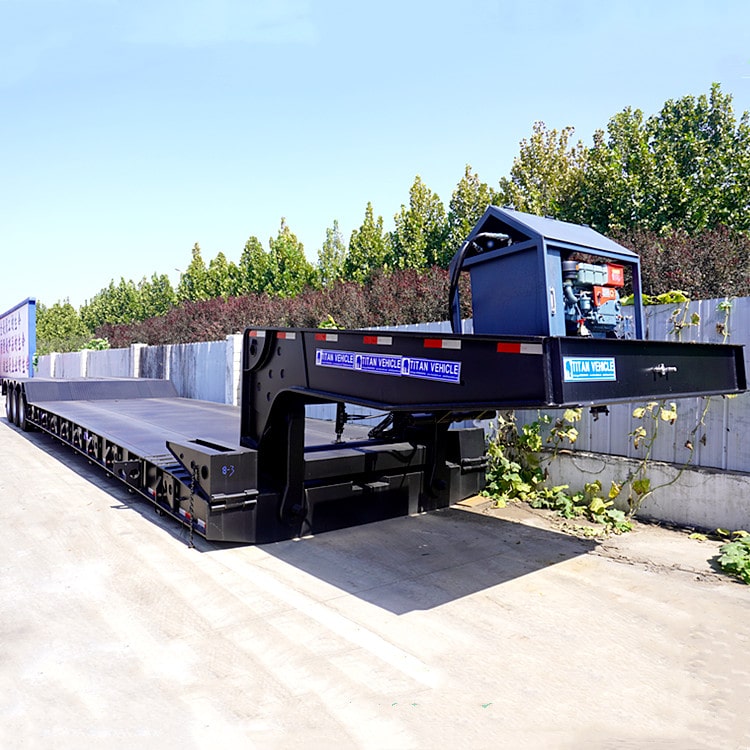

Detachable Gooseneck Lowboy Semi Trailer
Detachable Gooseneck Lowboy Semi Trailer

Detachable Gooseneck Lowboy Semi Trailer

27400 USD

Different Parameters, Different Price. Price Reference Only.



Detachable Gooseneck Lowboy Trailer are a form of double drop lowboy trailer that are designed to haul all types of heavy equipment. Ease and safety of loading are the primary features.

SKU: Detachable Gooseneck Lowboy Semi Trailer
MPN: TITAN9902005
Brand: TITAN

Product Description:

120ton detachable gooseneck trailer are a form of double drop lowboy trailer that are designed to haul all types of heavy equipment. Ease and safety of loading are the primary features.  Loading over the rear of a trailer increases in danger as the equipment gets heavier, taller and wider.  The higher weights and higher center of gravity on today’s supersized construction, agricultural, and forestry equipment demand that both the loading height and transport height be significantly lower than our drop deck flatbed trailers.

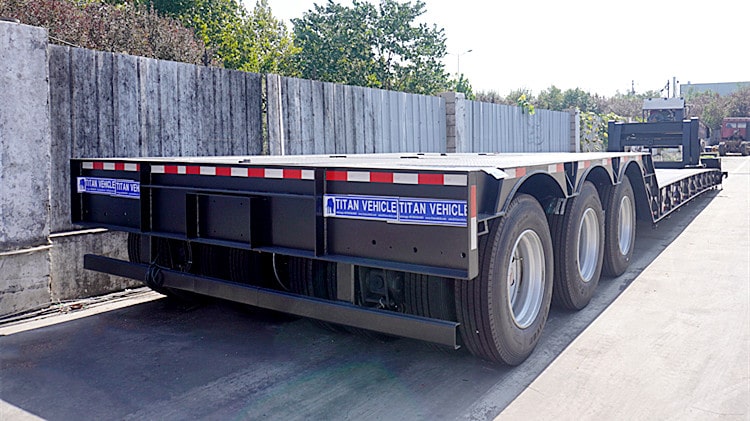

120TON Detachable Gooseneck Lowboy Trailer for Sale in Ghana

120TON Detachable Gooseneck Lowboy Semi Trailer for Sale

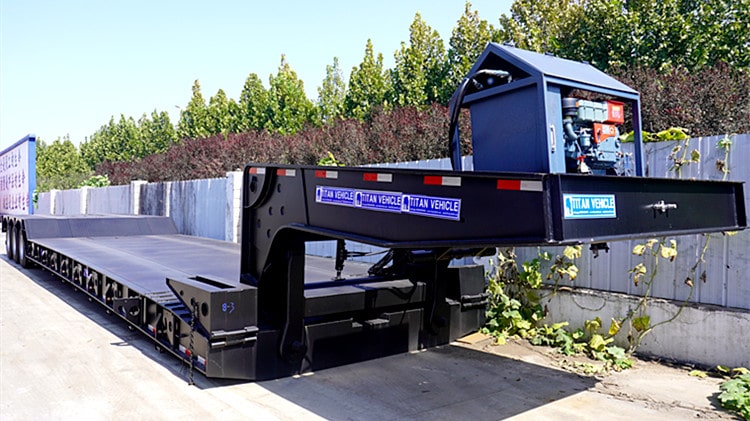

120TON Detachable Gooseneck Lowboy Trailer for Sale in Ghana

120TON Detachable Gooseneck Lowboy Semi Trailer for Sale

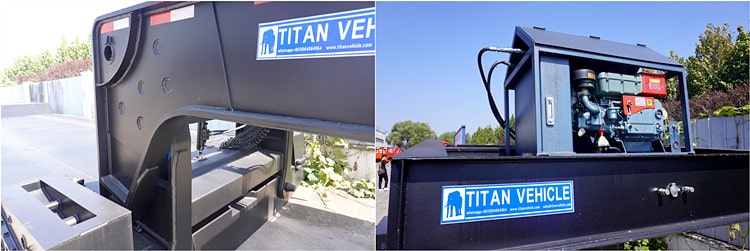

120ton detachable gooseneck trailer



Specification:

Dimension: 17000mm x 3000mm x 2500mm

Loading capacity(T): 50-150T

Axle: 3 line 6 axle

Tire: 24 units, 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension or air suspension

Spring leaf: 120(W)mmx16(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Tare weight: About 9.5-19T

Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.

Bottom Platform: 5mm thick, checkered plate

Hydraulic cylinder: 12KW diesel engine with hydraulic station

Ramp: spring or hydraulic type

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust



Through the video, you can know different types of 120ton detachable gooseneck trailer , detachable gooseneck lowboy trailer , detachable lowboy trailer for sale , Jiji , Olx , Nooteboom , VarioMAX, etc.

Please click "TITAN Removable Gooseneck Trailer" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
