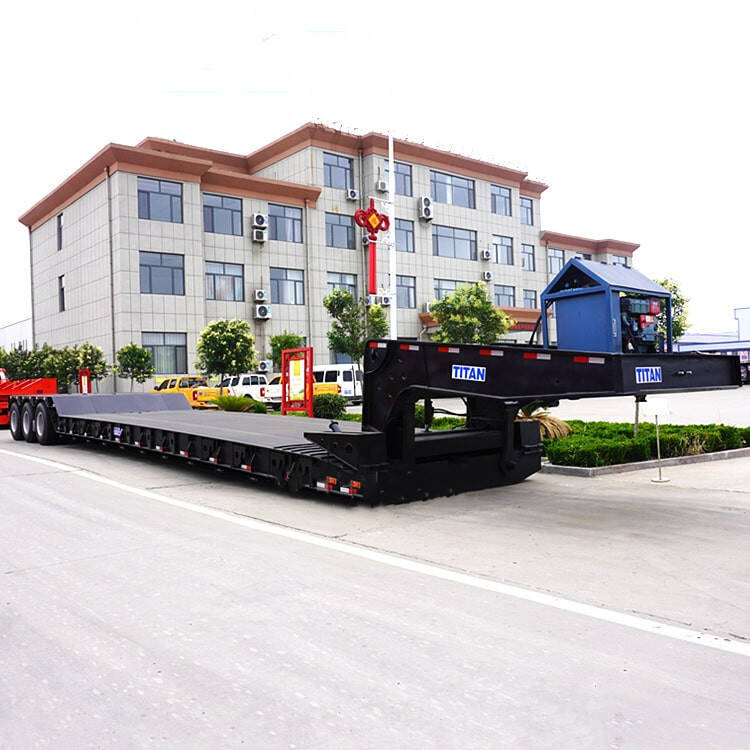

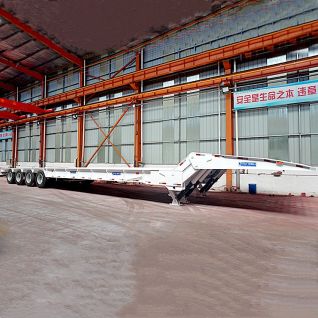

3 Line 6 Axle Detachable Gooseneck Trailer
3 Line 6 Axle Detachable Gooseneck Trailer

3 Line 6 Axle Detachable Gooseneck Trailer

27000 USD

Different Parameters, Different Price. Price Reference Only.



The gooseneck of the 3 line 6 axle detachable gooseneck trailer usually consists of four parts: the traction system, the force transmission system, the alignment adjustment system and the locking system.

SKU: 3 Line 6 Axle Detachable Gooseneck Trailer
MPN: TITAN9402009
Brand: TITAN

3 Axle 6 Line Detachable Gooseneck Trailer Product Description:

The gooseneck of the detachable gooseneck trailer usually consists of four parts: the traction system, the force transmission system, the alignment adjustment system and the locking system. The locking methods of the detachable gooseneck and the front end of the detacahble gooseneck trailers include traction saddle locking, pin locking and cam locking, etc.; the horizontal alignment of the gooseneck and the front end of the semi-trailer includes pin alignment, guide groove alignment, and vertical alignment with mechanical adjustment, Winch adjustment, air pressure adjustment and hydraulic adjustment. Detachable gooseneck and semi-trailer The front-end load transfer methods mainly include hook, orifice and orange. There are two locking control methods: manual control and pneumatic control.

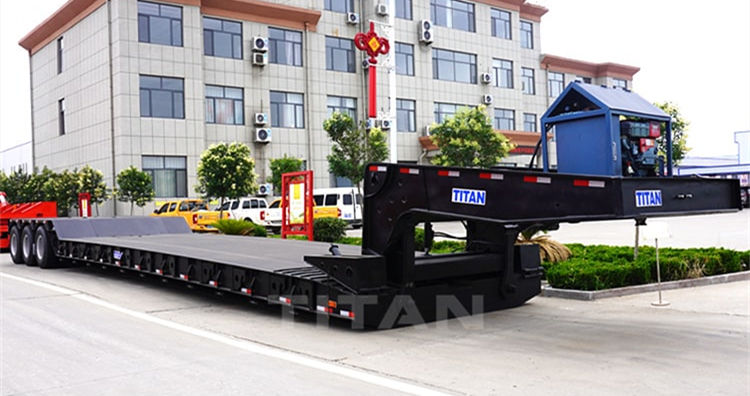

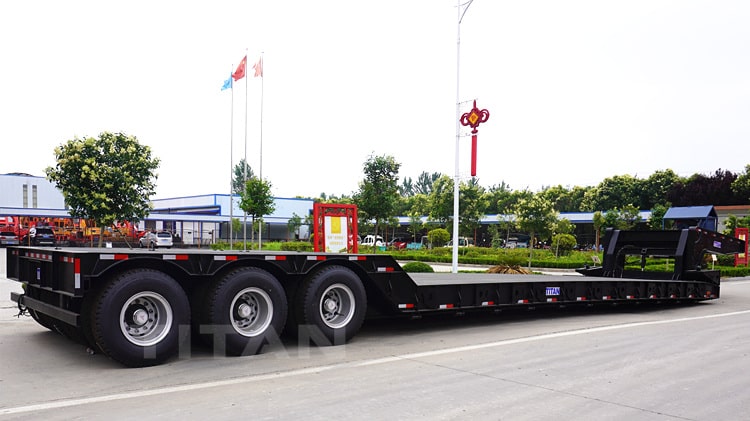

3 Axle Detachable Gooseneck Trailer for Sale in Tanzania

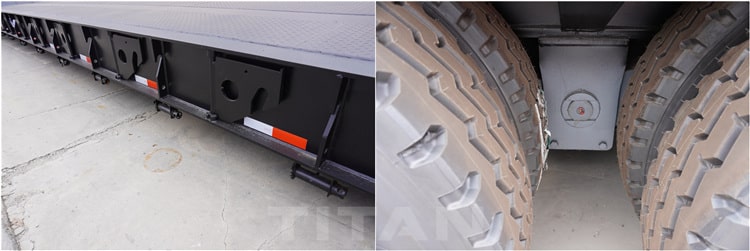

3 Axle Detachable Gooseneck Trailer for Sale in Tanzania

3 Axle Detachable Gooseneck Trailer for Sale in Tanzania



Specification:

Dimension: 17000mm x 3000mm x 2500mm

Loading capacity(T): 50-150T

Axle: 3 line 6 axle

Tire: 24 units, 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension or air suspension

Spring leaf: 120(W)mmx16(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Tare weight: About 9.5-19T

Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.

Bottom Platform: 5mm thick, checkered plate

Hydraulic cylinder: 12KW diesel engine with hydraulic station

Ramp: spring or hydraulic type

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust

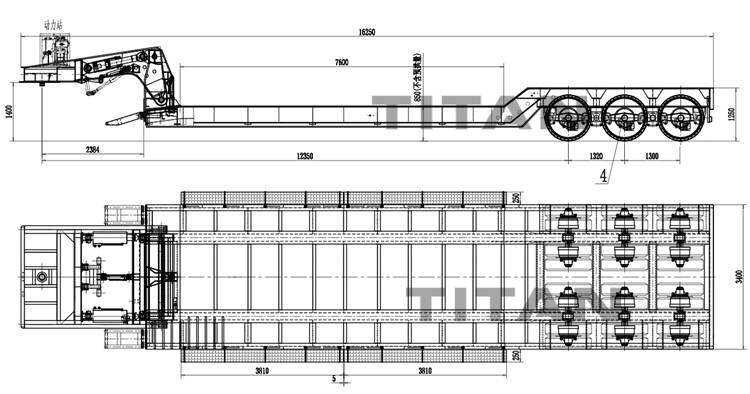

drawing

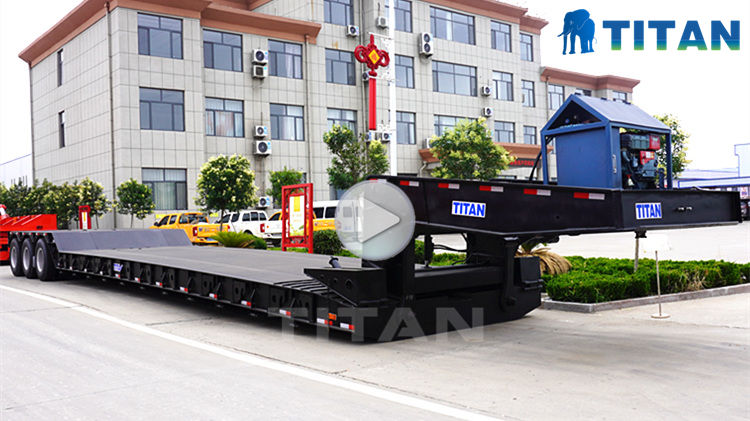

Through the video, you can know different types of detachable gooseneck trailer , 60/80ton detachable gooseneck trailer for sale , 3 line 6 axle detachable gooseneck trailer for sale in Tanzania , detachable trailer.

Please click "TITAN Removable Gooseneck Trailer" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!

Inquiry

Review

Garces from Peru - 2022-02-18T10:02:58+0800
The 3 line 6 axle detachable gooseneck trailer uses polyurethane paint, which makes the whole trailer looks beautiful and clear. Now trailers are working well. We are ready to place a new order with TITAN.
