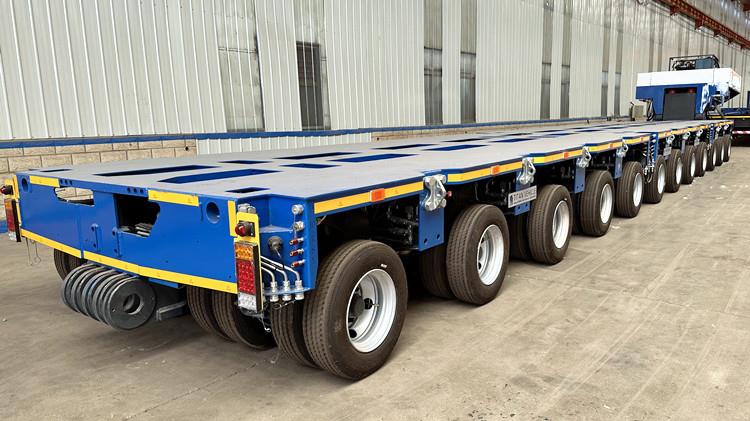

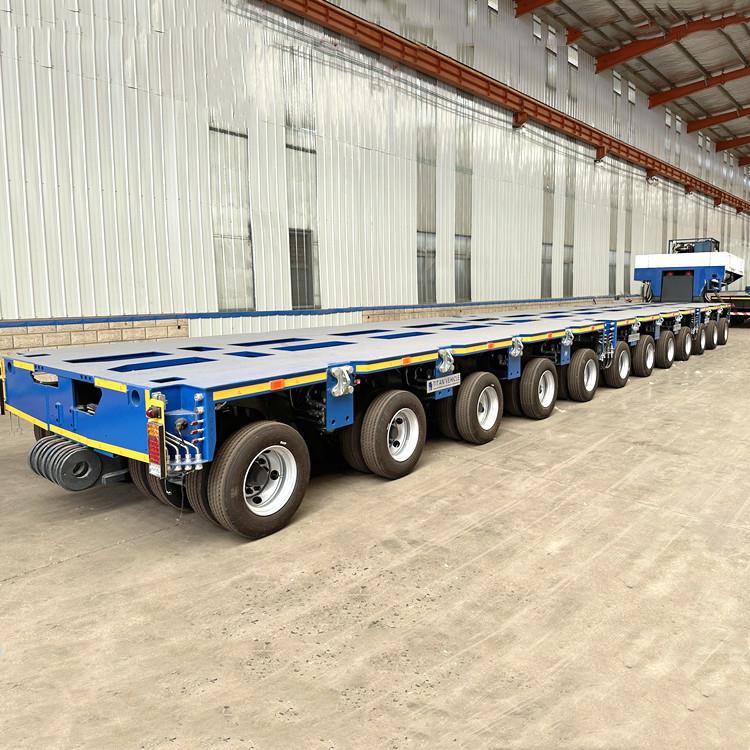

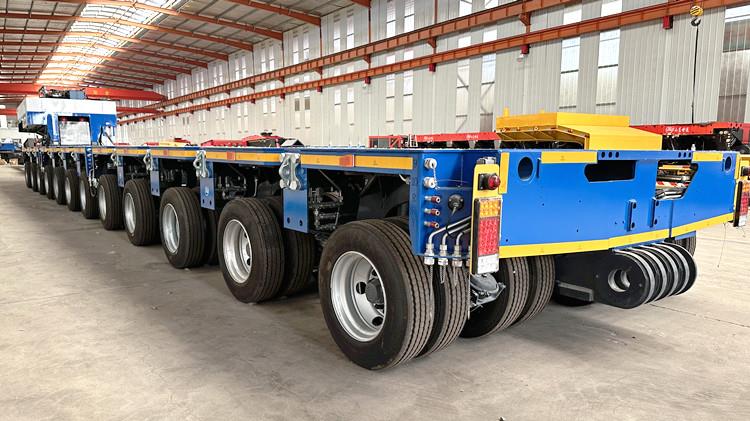

Goldhofer modular trailer is heavy duty modular transport systems designed for the safe and efficient transportation of extremely heavy and oversized cargo. The modular axle system can be combined longitudinally or side by side according to the weight, dimensions and transport conditions of the cargo.
Depending on the project, the hydraulic modular trailer can be equipped with goosenecks, turntables, loading decks, spacers, hydraulic power packs and other accessories. This modular design makes Goldhofer trailer a highly flexible solution for heavy haulage and special transportation projects.
Name: Goldhofer Modular Trailer

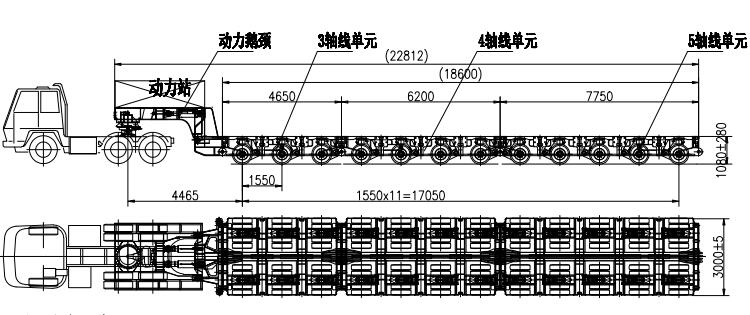

Dimension: 22812mm*3000mm*1080(+280/-280)mm
Usage: Transport bridge and heavy duty cargo
Max Payload: 275 tons
Tires: 96 units

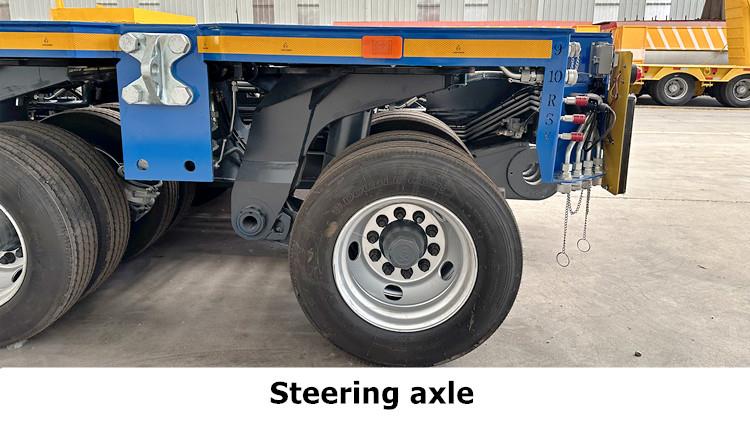

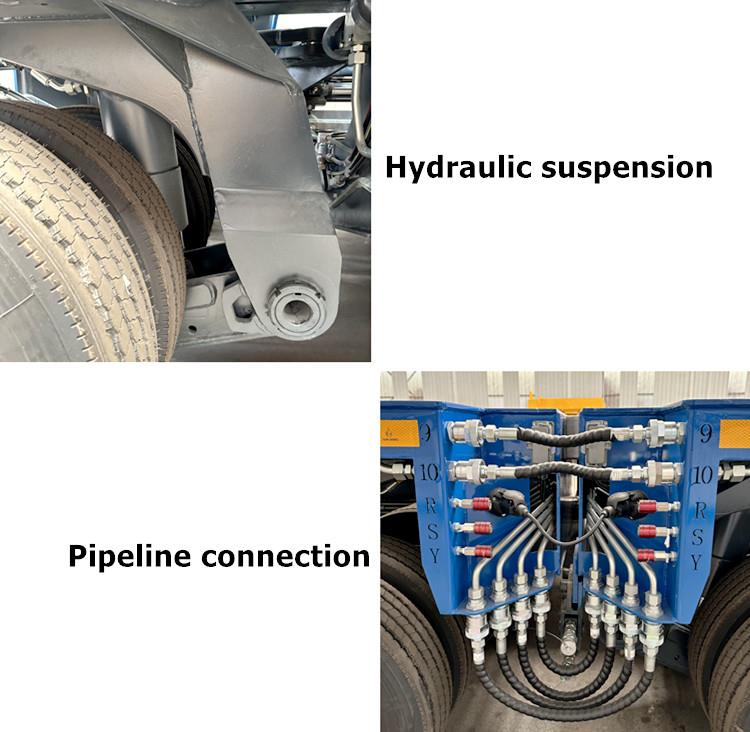

Suspension type: Hydraulic lifting steering
Landing gear: Front and rear hydraulic support cylinder
King pin: 2.00 or 3.5 inch bolt-in king pin
First, the number of axle lines and the axle load rating are among the most direct factors influencing the Goldhofer trailer price. If a customer is transporting standard construction machinery weighing a few dozen tons, fewer axle modules may suffice; however, transporting large transformers, generator sets, mining equipment, or massive industrial machinery might require a combination of 8, 12, 16, or even more axle lines. As the number of axle lines increases, so does the quantity of modules and associated components—such as hydraulic suspension, steering, braking, and coupling systems. Consequently, the final price is not simply calculated by adding up a "cost per axle" figure, but is instead quoted based on the complete configuration package.

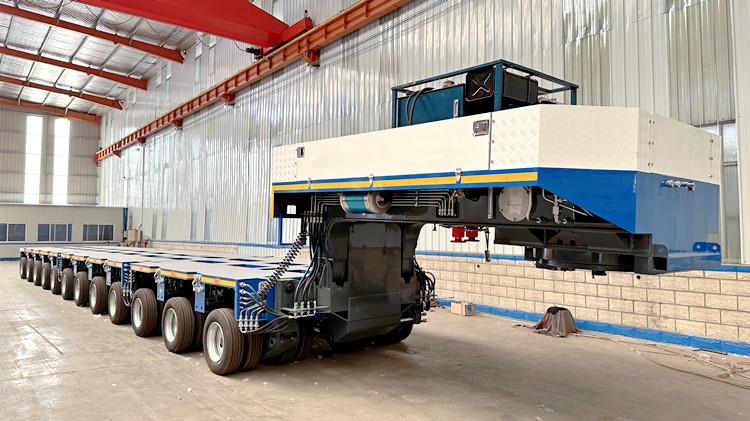

The specifications and type of gooseneck also significantly impact the Goldhofer trailer price. The gooseneck serves as the connection between the prime mover and the modular transport system, while also handling towing, steering, and partial load transfer. Goosenecks with varying load-bearing capacities can be selected based on the specific transport weight and project requirements.

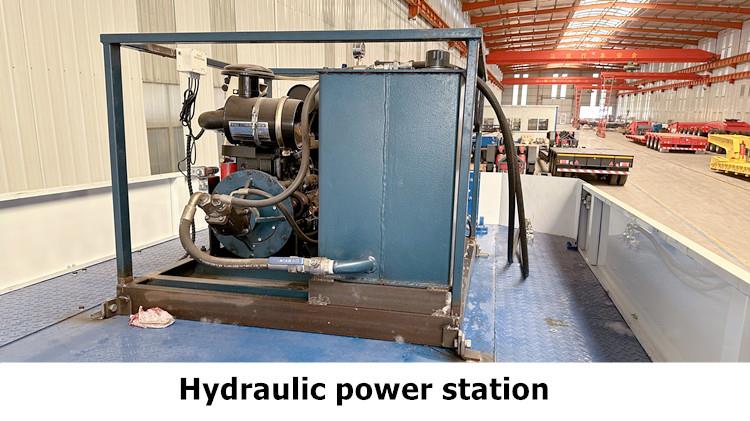

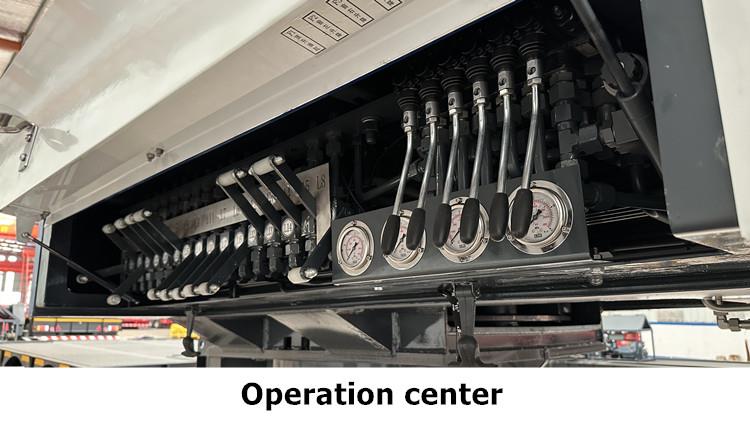

Hydraulic power units and control systems also influence the Goldhofer trailer price. While basic towed modular transport systems can rely on the prime mover for operation, more complex heavy-haul projects may require an independent hydraulic power pack to supply energy for the vehicle's hydraulic suspension, steering, and other hydraulic functions. If the customer requires features such as wireless remote control, electronic control, or synchronized hydraulic control, the price of the entire system will increase further.
