4 Line 8 Axle Low Bed Trailer
4 Line 8 Axle Low Bed Trailer

4 Line 8 Axle Low Bed Trailer

24000 USD

Different Parameters, Different Price. Price Reference Only.



The low bed trailer loading ramps are made by high strength steel, TITAN has different types of ramps: mechanical ramp and hydraulic ramp.

SKU: 4 Line 8 Axle Low Bed Trailer
MPN: TITAN9401TDP025
Brand: TITAN

Low bed trailer Product description:

Low Bed Trailer is widely used, mainly for medium and long-distance freight transportation. Low bed trailers are commonly used to transport heavy vehicles, rail vehicles, mining machinery, forestry machinery, agricultural machinery, and other heavy-duty cargo.

The low bed trailer loading ramps are made by high strength steel, with high loading capacity, which will not happen to the deformation when carrying heavy equipment.  There are two types of ramps: mechanical ramp and hydraulic ramp.

Heavy Duty 100 Ton Low Bed Trailer Price Deliver to Beira Port

Heavy Duty 4 line 8 axle Low Bed Trailer Price

Heavy Duty 100 Ton Low Bed Trailer Price Deliver to Beira Port



Specification´╝Ü

Overall dimension: 19000mm * 3350mm *3400mm

Loading capacity(T): 150T

Axle: 4 Line 8 Axle

Rim: 8.0-20

Tire: 11.00R20

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.

Bottom Platform: 5mm thick checkered plate

Ramp: Spring ramp

Gooseneck: Optional

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)



Drawing of low bed trailer dimensions



120 Ton Low Bed Trailer Truck details display video

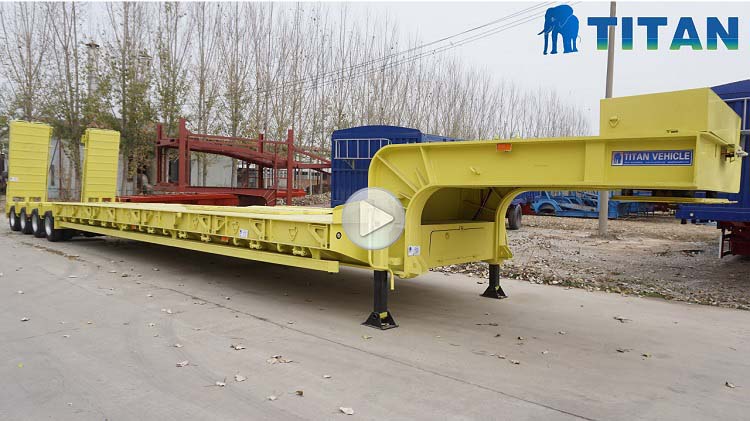

low bed trailers video



Through this videos, you can learn about different types of lowbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.

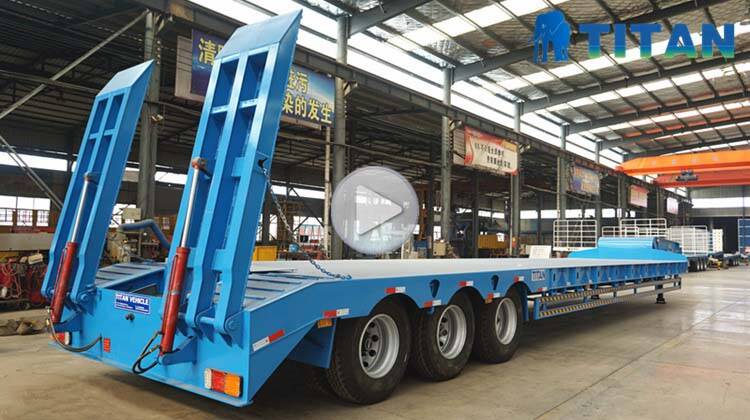

Low Bed Semi Trailer video



Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
