Different Parameters, Different Price. Price Reference Only.

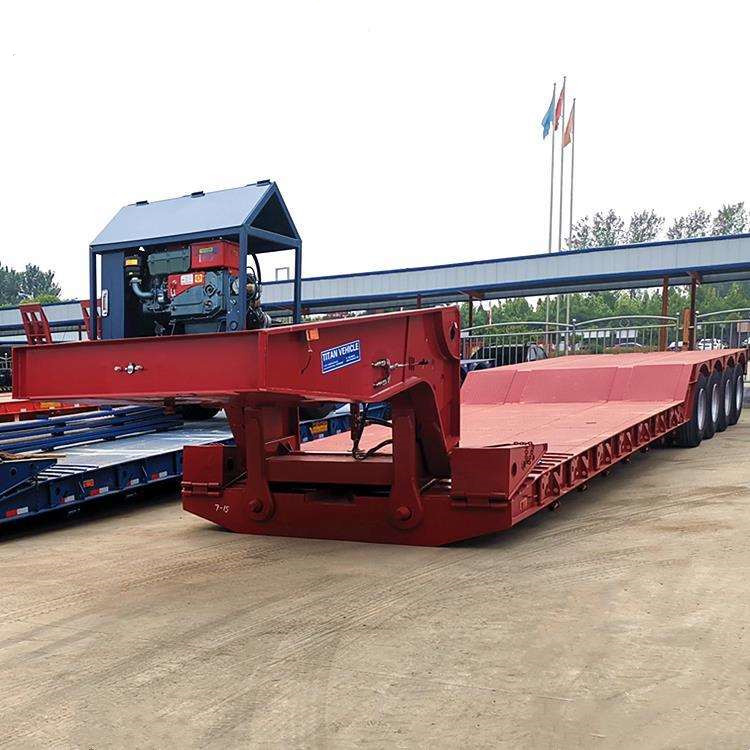

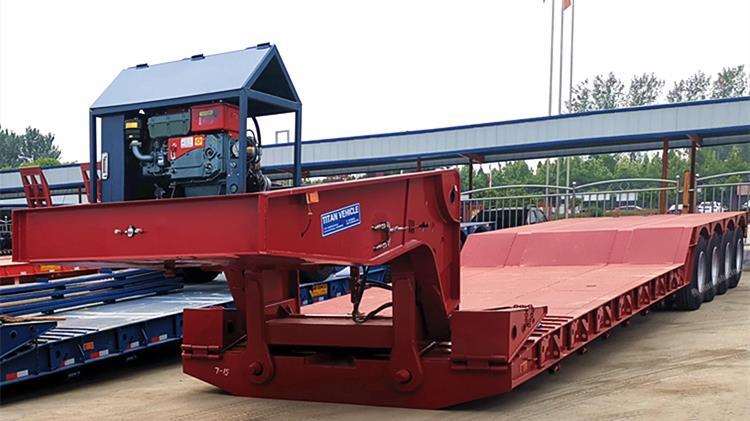

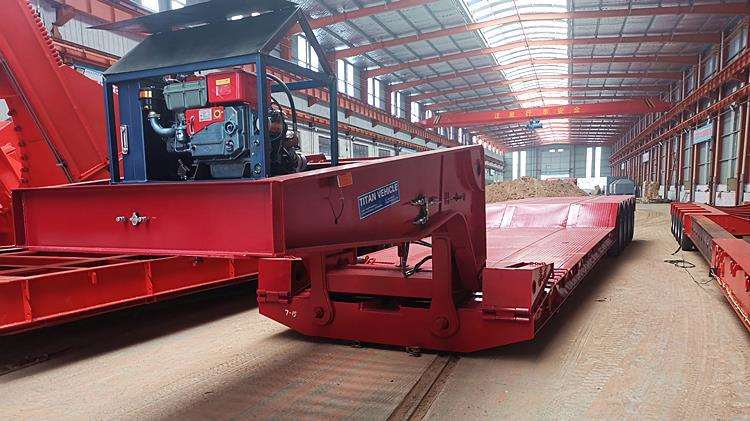

100ton Lowboy Step Deck Gooseneck Trailer produced by TITAN, besides the 100ton step deck gooseneck trailer, it also provides 60/80/120/150ton lowboy step deck gooseneck trailer.
Our detachable gooseneck trailers impressed the industry with their versatility and competitive price. We don't think that dragging wide agricultural equipment will bankrupt farmers. We have fine-tuned the design and invested in our own aluminum profiles to get the perfect aluminum slide-out legs. This durable component combines strength and light weight.
The result was an extension of 27 inches on each side and a convenient stop at 24 inches, 18 inches and 12 inches to tow equipment that may not be too wide but requires a larger capacity on each leg. There is a flat deck for transporting equipment at the rear. Available deck heights are 18 inches, 20 inches and 24 inches, and the well length can be up to 33.5 inches, and you can choose to add a turning axis. It will be difficult for you to find a trailer that will not be hauled. device of.
Dimension: 16500mm x 3000mm x 2500mm
Loading capacity(T): 50-150T
Axle: 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20 or 900*22.5
Suspension: Mechanical suspension or air suspension
Spring leaf: 120(W)mmx16(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Tare weight: About 9.5-19T
Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.
Bottom Platform: 5mm thick, checkered plate
Hydraulic cylinder: 12KW diesel engine with hydraulic station
Ramp: spring or hydraulic type
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Tool box: 1 set
Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust
Shipping terms: Transported by the bulk carrier in an RORO or 40HQ container

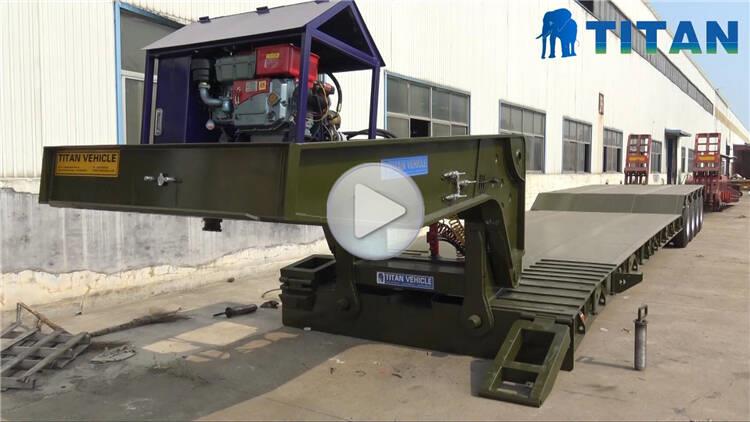

Through the video, you can know different types of lowboy step deck , 100ton lowboy step deck trailer , 4 axle lowboy step deck gooseneck trailer, etc.
Please click "TITAN Removable Gooseneck Trailer" to get detailed video!
Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
