The ramp of low bed semi trailer is welded with H60 steel of high strength steel plate, which has strong bearing capacity and effectively ensures that the weight of excavator or other heavy equipment can pass through the spring ramp without deformation or damage.
The load capacity of the low bed semi trailer for sale is mainly achieved by the frame, that is, the most important factor affecting the tri axle low bed semi trailer for sale load capacity is the frame. The stronger the frame, the better the carrying capacity.
The main beam of TITAN low bed truck price is made of Q460C high strength structural steel. Q460C steel has a yield strength of ≥620Mpa, which is more durable and stronger than ordinary steel. Its bearing capacity is 5 times that of the tri axle low bed semi trailer manufacturers made of Q345 steel.
Low Bed Truck Price | Tri Axle Low Bed Semi Trailer for Sale
Low Bed Truck Price | Tri Axle Low Bed Semi Trailer for Sale
Spot discount, welcome contact us to get low bed truck price

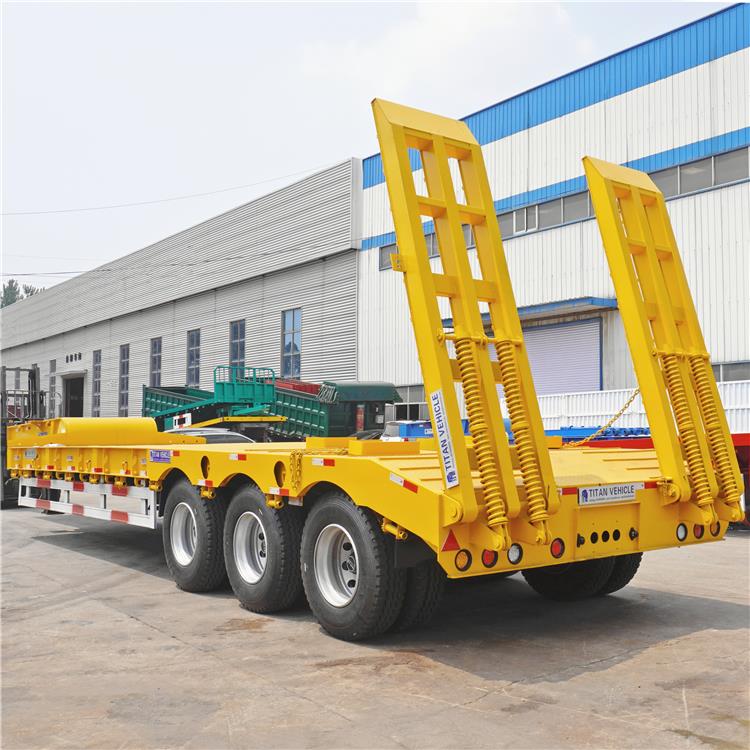

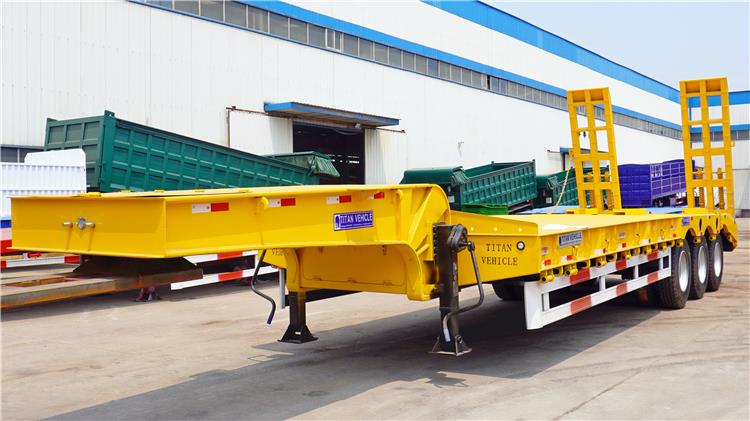

Low Bed Truck Price | Tri Axle Low Bed Semi Trailer for Sale
Overall dimension: 13000mm * 3000mm *3400mm
Loading capacity(T): 60 tons
Axle: 3 axle low bed trailer, 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20

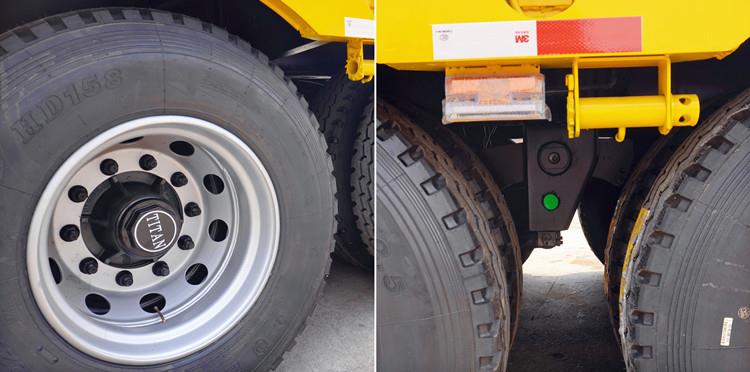

Tire: 12units, 11.00R20
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

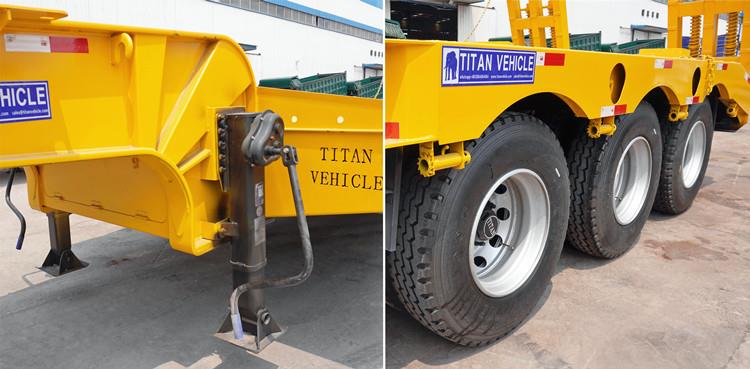

Landing gear: JOST brand
Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.
Bottom Platform: 5mm thick checkered plate
Ramp: Spring ramp
Gooseneck: Optional
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
1. Main Beam of low bed semi trailer
TITAN low bed semi trailer for sale main baem adopts a height of 500mm and a thickness of 14mm. The thickness of upper plate is 22mm, the thickness of lower plate is 22mm and the width of upper and lower plate is 220mm.
Other factories use Q345 steel main beam for the low bed truck price. The width of the upper and lower plates is 140mm. The load-bearing capacity of the frame is 27% lower than that of TITAN.

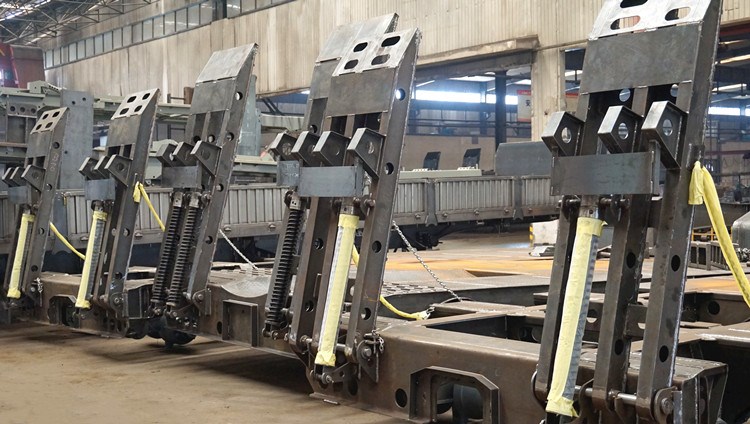

2. Ramp of low bed trailer truck
The ramp of low bed truck is welded with H60 steel of high strength steel plate, which has strong bearing capacity and effectively ensures that the weight of excavator or other heavy equipment can pass through the spring ramp without deformation or damage.
The low bed truck trailer ramp adopts four-in-one high-strength board, which has high strength, durability and no deformation. Using high elastic double spring climbing ramp, ordinary people can easily lift with one hand, which is more convenient to operate.
The service can up to more than 5 years, other factories use channel steel welding, it is easy to deformation collapse.

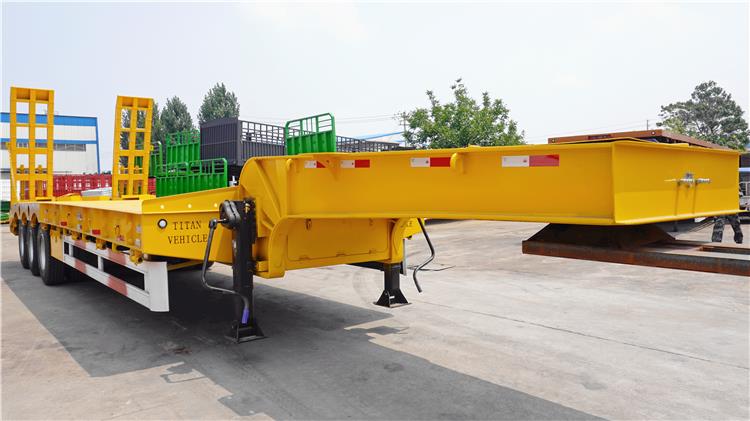

3. Gooseneck of low bed trailer
TITAN tri axle low bed semi trailer for sale main beam gooseneck lower has a reinforcement, gooseneck double plat. The trailer in the heavy load when the deformation range is very small, better to use.
After the trailer is produced, all of TITAN low bed semi trailer for sale is tested to ensure that our trailers are free of problems.
When transporting low bed truck price, many customers choose bulk carriers or ro-ro ships, which has low transportation costs and short transportation time.
TITAN tri axle low bed semi trailer for sale have professional staff to make a package, all of them were trained constantly. Please notice that to prevent the low bed truck price paint from being corroded by seawater to we spray a layer of wax on the surface of the low bed truck price before shipping. And covering poncho to prevent the damp condition.
Through these videos, you can learn about different kinds of low loader semi trailer, such as 2 axle, 3 axle, 4 axle low loader, hydraulic scale low loader, etc.
